| Remote Control |
Power, Up, Down, Left, Right, Enter, Menu, Back, Import, Delete, Single, Clock, Index, Slideshow, Zoom in, Zoom out, Rotate, Select Device, Marking, Sort |
| LCD Panel size |
10.1" (panel diagonal); Clear Photo LCD |
| Aspect Ratio |
16:10 |
| Display Format(s) Supported |
JPEG, TIFF (Exif Ver 2.3 compatible, BMP (1, 4, 8, 16, 24, 32 bit Windows format) and RAW (preview only: SRF, SR2, ARW) |
| Playback |

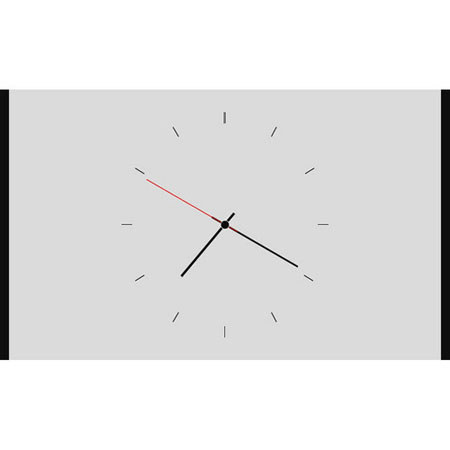

Still Image Playback; Movie File Playback; Music File Playback; Frame placement supported; Slideshow Playback (10 patterns); Slideshow Video Playback; Index Playback; Clock & Calendar Playback (14 designs plus lunar calendar, 12hr/24hr display); Resume Playback; Landscape, Portrait, Auto orientation |
| Resolution |
WSVGA 1024 x 600 |
| User Memory Capacity |
Internal Memory: Internal Memory capacity 2GB; Capacity for photo image area: 1.8GB; Maximum number of photos that can be stored in internal memory: 4000; and copies from memory card to internal memory and internal memory to memory card |
| Media & Modes Supported-1 |
Compatible Memory Card: Memory Stick Duo (up to 2GB); Memory Stick PRO Duo (up to 32GB); Memory Stick Micro (M2)(with optional adaptor) (up to 32GB; MagicGate Memory Stick Duo (up to 2GB); Memory Stick PRO-HG Duo(8-bit parallel transfer of "Memory Stick PRO-HG Duo" is not supported) (up to 32GB); SD card (up to 2GB); |
| Media & Modes Supported-2 |
Mini SD card(with optional adaptor) (up to 2GB); micro SD card(with optional adaptor) (up to 2GB); SDHC card (up to 32GB); mini SDHC card(with optional adaptor)(up to 32GB); micro SDHC card (with optional adaptor)(up to 32GB);SDXC (up to 64GB) |
| USB Port(s) |
USB Mini-B/USB-A (Hi-speed) |
| Optics/Lens Pixels |
Maximum pixels that can be decoded: 48 megapixels |
| Action Buttons |
Standby, Up, Down, Right, Left, Enter, Menu, View Mode, Back |
| Function |
Image display setting (Fit to screen/Entire Image) |
| Power Consumption |
10.1W (max) including the adaptor |
| AC Power |
AC100-240V (50/60Hz), 0.3A(max) |
| Power Requirements |
DC5V, 2.0A/ DSC5V, 2.2A |
| Operating Temperature |
5 degrees C - 35 degrees C |
| Storage Temperature |
-20 degrees C - +60 degrees C |
| System Requirements |
Processor: Windows PC or compatible Macintosh USB Port: To connect to a computer, optional USB cable required. (Mini B, within 2m) |
| Dimensions (W x H x D) |
Photo Frame: 10.16 x 6.99 x 1.08" (258 x 177.6 x 27.5mm) Including Stand: 10.16 x 6.99 x 4.84" (258 x 177.6 x 122.9mm) |
| Weight |
20.6 oz (585g) without AC adaptor |
