About this item

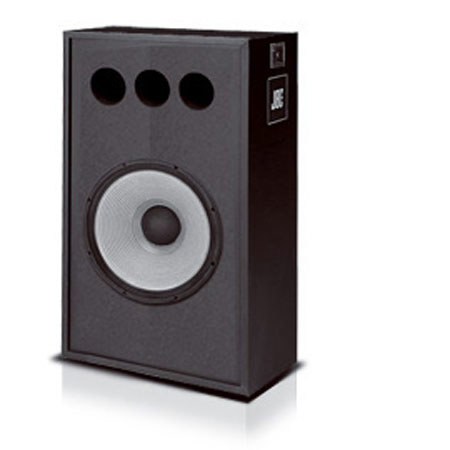

The JBL 3635 Cinema Subwoofer provides natural sound quality for music and dialog in small cinema applications. Enclosure design is shallow in depth (14.5") to increase placement flexibility and minimize behind screen space requirements. The single 2042H 460 mm (18") LF driver provides exceptional low frequency augmentation for small cinemas desiring to use the subwoofer channel, but whose budgets could previously not support it.

Key Features

  • Components: One 460 mm (18 in) low frequency driver
  • Shallow profile cabinet minimizes behind-screen space

Technical Specs

Frequency range (-10 dB) 28 Hz to 500 Hz
Frequency response (± 3 dB) 38 Hz to 100 Hz
Power capacity 300 W
Sensitivity 100 dB (1W, 1m)
Nominal impedance 8 ohms
Recommended crossover frequency 100 Hz
Half-space reference efficiency 5%
Maximum acoustic power output 15 W IEC standard (sine wave input)
System Polarity Positive voltage to RED produces forward cone motion
Input connectors Barrier strip screw terminals
Dimensions (H x W x D) 1168 x 651 x 368 mm / 46 x 25.63 x 14.5 inches
Weight 51 kg (113 lbs)
