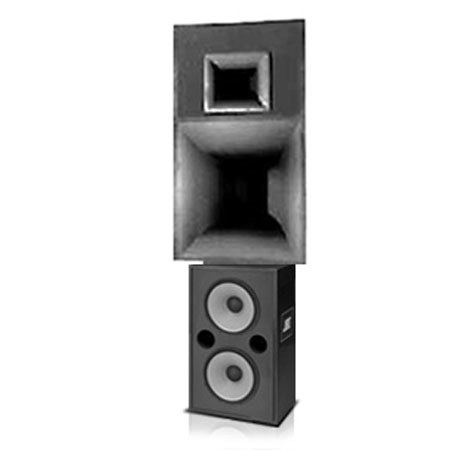

JBL 5672BI Three-Way Bi-Amplified Screen Channel System, 2.5kHz Crossover Frequency, 112dB-SPL @ 10 m Maximum Output

The JBL 5672BI Cinema Systems features true three-way system design, with each section optimized for its specific bandpass region. It also features the best of JBL Transducer and Horn technology to produce a system design with maximum power handling capability and acoustic power output, with extremely low distortion. The system has been designed with particular attention to power response and directivity control, allowing seamless transitions between the three acoustic sections and smooth timbral character - consistent with current industry listening standards. The 5672BI provides these benefits in a system package suitable for most medium to large cinema screen Channel systems, as well as for studio production and post-production environments.

The 5672BI is intended for tri-amplified use, utilizing JBL's DSC family of digital controllers. Crossover, signal alignment and equalization can be accomplished using three channels of digital signal control, using factory pre-set tunings, for optimum performance from the 5672-BI. The 5672BI is a bi-amp version of the 5672. It includes an external passive crossover that mounts onto the woofer enclosure and provides a crossover frequency of 2.5 kHz between the 2390H midrange compression driver and the 2451 high frequency compression driver. An active electronic crossover is required between the woofer and mid/high combination.
