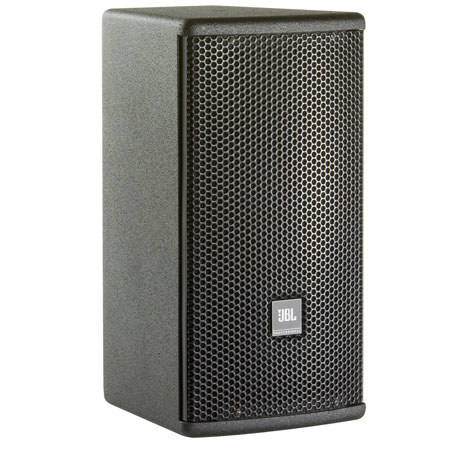

The JBL AC16 is an ultra-compact full range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column or wall mounting.
The high frequency device is a 1" exit compression driver integrated into a newly designed 90 degree x 90 degree PT (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing.
The AC16 utilizes a 6.5" Symmetrical Field Geometry (SFG) LF Transducer with a copper-clad aluminum edge wound 2" voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion.
The rugged multi-ply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount type bracket.
The AC16 is also equipped with attachment points located on the bottom of the enclosure for a stand mount accessory. The rugged plywood enclosure features JBL's textured DuraFlex finish and is equipped with a heavy duty powder coated steel, foam-backed grille.
|Frequency Range (-10 dB)||55 Hz - 20 kHz|
|Frequency Response (+/-3 dB)||65 Hz - 18 kHz|
|Horizontal Coverage||90 deg.|
|Directivity Factor (Q)||7 (avg. 500 Hz - 16 kHz)|
|Directivity Index (DI)||8 dB (avg. 500 Hz - 16 kHz)|
|System Sensitivity||90 dB SPL/1W/1m|
|Rated Maximum SPL (1m)||110 dB|
|System Nominal Impedance||16 Ohms|
|Long-Term System Power Rating||(Continuous/Program/Peak): 160 W / 320 W / 640 W|
|AES Standard Power Rating||250 W|
|Low Frequency Driver||1 x JBL 226J, 165 mm (6.5 in) SFG driver with 50 mm (2 in) edge wound voice coil|
|High Frequency Driver||1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil|
|Enclosure||12 mm and 15 mm exterior grade multi-ply hardwood plywood|
|Suspension Attachment||5 x M8 points; 1 top, 3 bottom, 1 rear.
4 x M6 rear for OmniMount 30.0
|Grille||Powder coated 16 gauge perforated steel, acoustically transparent foam backing|
|Input Connectors||Neutrik Speakon NL4 (2 wired in parallel), plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade lugs. NL4's +1/-1 in parallel with barrier strip (+2/-2 loop through)|
|Dimensions (H x W x D)||381.0 x 199.4 x 226.1 mm (15.0 x 7.8 x 8.9 in)|
|Weight||7.2 kg (15.8 lb)|
