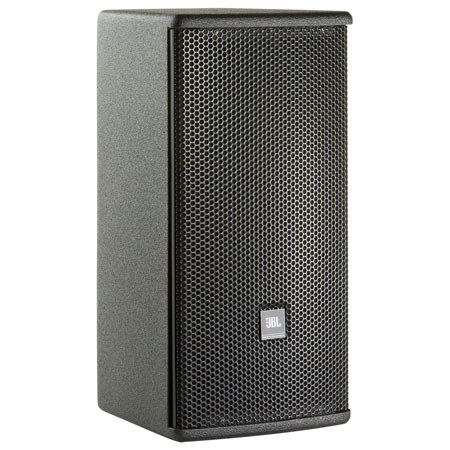

The JBL AC18/26 is a compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" exit compression driver integrated into a newly designed 120 degrees x 60 degrees rotatable PT (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC18/26 utilizes an 8" Symmetrical Field Geometry (SFG) LF Transducer with a copper-clad aluminum edge wound 2.5" voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion.
The rugged multi-ply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount type bracket. The AC18/26 is also equipped with attachment points located on the bottom of the enclosure for a stand mount accessory. The rugged plywood enclosure features JBL's textured DuraFlex finish and is equipped with a heavy duty powder coated steel, foam-backed grille.
|Frequency Range (-10 dB)||52 Hz - 20 kHz|
|Frequency Response (+/-3 dB)||63 Hz - 19 kHz|
|Directivity Factor (Q)||7 (avg. 500 Hz - 16 kHz)|
|Directivity Index (DI)||8 dB (avg. 500 Hz - 16 kHz)|
|System Sensitivity||92 SPL dB/1W/1m|
|Rated Maximum SPL (1m)||116 dB|
|System Nominal Impedance||8 Ohms|
|Long-Term System Power Rating||Continuous/Program/Peak: 250 W / 500 W / 1000 W|
|AES Standard Power Rating||375 W|
|Transducers: Low Frequency Driver||1 x JBL 228H, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil|
|Transducers: High Frequency Driver||1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil|
|Transducers: High-Frequency Waveguide||PT-D126HF-1 (Field Rotatable)|
|Enclosure||12 mm and 15 mm exterior grade multi-ply hardwood plywood|
|Suspension Attachment||6 x M8 points; 1 top, 3 bottom, 2 rear.
4 x M6 rear for OmniMount 30.0
|Finish||Black DuraFlex finish|
|Grille||Powder coated 16 gauge perforated steel, acoustically transparent foam backing|
|Input Connectors||Neutrik Speakon NL4 (2 wired in parallel), plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade lugs. NL4's +1/-1 in parallel with barrier strip (+2/-2 loop through)|
|Environmental Specifications||Mil-Std 810; IPx3 per IEC529|
|Dimensions (H x W x D)||469.9 x 237.5 x 254.0 mm / 18.5 x 9.4 x 10.0 inches|
|Weight||12.8 kg (28.2 lb)|
