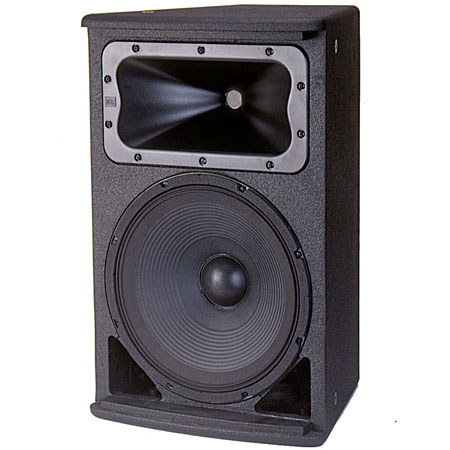

JBL AC2212/95 Compact 2-Way Loudspeaker with 1x12" LF, 55Hz - 17kHz Frequency Response

JBL
SKU: JBLAC221295 MFR: AC2212/95

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
Closeout

Our Price

$977.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About JBL AC2212/95

The JBL AC2212/95 is a compact 2-way full range loudspeaker system comprised of one 300 mm (12") low frequency driver and one 25 mm (1") voice-coil compression driver. The Progressive Transition waveguide provides 90 degrees x 50 degrees coverage. High-slope passive crossovers minimize band overlap and well-controlled off-axis response enhances arrayability.

The cabinet is fitted with M10 threaded suspension points. Optional U-bracket, as well as pre-engineered array bracketry is available for easy installation. Four threaded inserts located on back of the enclosure allow attachment of an Omnimount or similar mounting bracket.

JBL AC2212/95 Features

  • 90 degrees x 50 degrees Coverage
  • Progressive Transition Waveguide for good pattern control with low distortion
  • Bi-Amp/Passive Switchable
  • Optional U-Bracket for easy installation
  • Optional planar array frame kit

JBL AC2212/95 Specifications

Frequency Range (-10 dB)
50 Hz - 19 kHz
Frequency Response (±3 dB)
55 Hz - 17 kHz
Coverage Pattern
90deg. x 50deg.
Directivity Factor (Q)
8.9
Directivity Index (DI)
9.5 dB
Crossover Modes
Bi-amp/Passive switchable
Passive Crossover Slopes
3rd order (18 dB/oct) Butterworth HP & LP, 1700 Hz
Transducer Power Rating (AES)
LF: 300 W (1100 W peak), 2 hrs and 250 W (1000 W peak), 100 hrs
HF: 30 W (120 W peak), 2 hrs
Long-Term System Power Rating (IEC)
Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPL
Bi-amp mode:
LF: 120 dB-SPL cont avg (126 dB peak)and HF: 127 dB-SPL cont avg (133 dB peak)
Passive mode:
120 dB-SPL cont avg (126 dB peak)
System Sensitivity6 (1W @ 1m)
Passive mode: 95 dB SPL
Low Frequency Driver
1 x JBL M112-8 300 mm (12 in) driver with 63 mm (2.5 in) voice coil
LF: Nominal Impedance
8 ohms
LF: Sensitivity
95 dB SPL
High Frequency Driver
JBL 2412H compression driver, 25 mm (1 in) voice coil
HF: Nominal Impedance
8 ohms
HF: Sensitivity
112 dB SPL
Enclosure
Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment
15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware. 4 x M8 on rear for Omnimount 60 Series
Finish
Black DuraFlex finish
Grille
Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
Input Connector
NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG)wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through
Environmental Specifications
Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D)
548 x 355 x 352 mm (21.6 x 14.0 x 13.9 in)
Weight
17.3 kg (38 lb)
