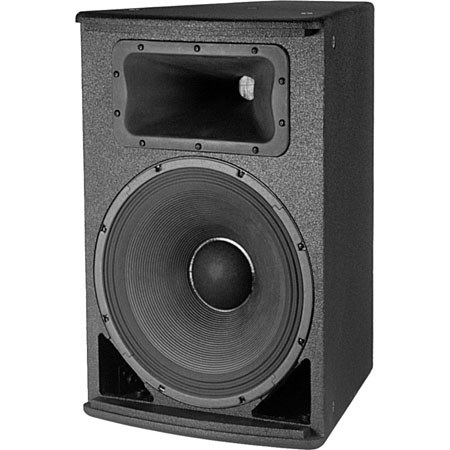

JBL AC2215/64 Compact 2-Way Loudspeaker with 1x15" LF, 50Hz - 17kHz Frequency Response

SKU: JBLAC221564 MFR: AC2215/64
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,066.00
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the JBL AC2215/64

The JBL AC2215/64 is a compact 2-way full range loudspeaker system comprised of one 380 mm (15") low frequency driver and one 38 mm (1.5") exit/25 mm (1") voice-coil compression driver. The Progressive Transition waveguide provides 60 degrees x 40 degrees coverage. High-slope passive crossovers minimize band overlap and well-controlled off-axis response enhances arrayability.

The cabinet is fitted with M10 threaded suspension points. Optional U-bracket is available for easy installation. JBL AC2215/64 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

JBL AC2215/64 Features

  • 60 degrees x 40 degrees Coverage
  • Progressive Transition Waveguide for good pattern control with low distortion
  • Bi-Amp/Passive Switchable
  • Optional U-Bracket for easy installation

JBL AC2215/64 Specifications

Frequency Range (-10 dB) 42 Hz - 19 kHz
Frequency Response (±3 dB) 50 Hz - 17 kHz
Coverage Pattern 60deg. x 40deg.
Directivity Factor (Q) 17.8
Directivity Index (DI) 12.5 dB
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Slopes 4th order (24 dB/oct) Linkwitz-Riley HP & LP, 2.2 kHz
Transducer Power Rating (AES) LF: 275 W (1100 W peak), 2 hrs
250 W (1000 W peak), 100 hrs
HF: 30 W (120 W peak), 2 hrs
Long-Term System Power Rating (IEC) Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPL Bi-amp mode:
LF: 121 dB-SPL cont avg (127 dB peak)
HF: 129 dB-SPL cont avg (135 dB peak)
Passive mode:
121 dB-SPL cont avg (127 dB peak)
System Sensitivity Passive mode: 97 dB SPL
Low Frequency Driver 1 x JBL M115-8A 380 mm (15 in) driver with 63 mm (2.5 in) voice coil
LF: Nominal Impedance 8 ohms
LF: Sensitivity 97 dB SPL
High Frequency Driver JBL 2412H/MTA, 38 mm (1.5 in) exit compression driver, 25 mm (1 in) voice coil
HF: Nominal Impedance 8 ohms
HF: Sensitivity 114 dB SPL
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish Black DuraFlex finish
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through
Environmental Specifications Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D) 637 x 422 x 504 mm (25.1 x 16.6 x 19.9 in)
Weight 24.0 kg (53 lb)
