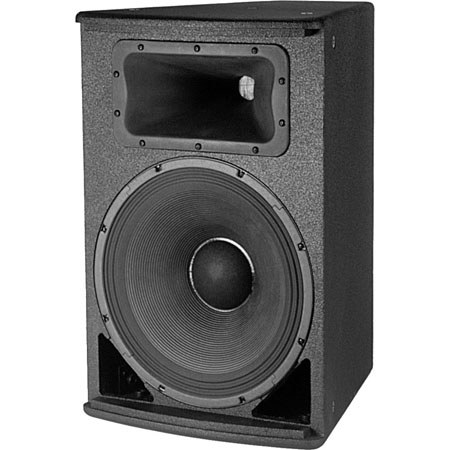

JBL AC2215/95 Compact 2-Way Loudspeaker with 1x15" LF Transducers

JBL
SKU: JBLAC221595 MFR: AC2215/95
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $54.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $79.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $222.95

Our Price

$1,066.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Ways To Save

Product Highlights

  • 90 degree x 50 degree Coverage
  • Bi-Amp/Passive Switchable
  • Optional U-Bracket for easy installation
  • Black
  • 15" PA Speaker
JBL AC2215/95: Picture 1 regular $1,066.00

About JBL AC2215/95

The JBL AC2215/95 is a compact 2-way full-range loudspeaker system comprised of one 380 mm (15") low frequency driver and one 38 mm (1.5") exit/25 mm (1") voice-coil compression driver. The PT Progressive Transition waveguide provides 90 degree x 50 degree coverage. High-slope passive crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Optional U-bracket is available for easy installation.

The AC2215/95 is part of JBL's AE Application Engineered series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

JBL AC2215/95 Features

  • 90 degree x 50 degree Coverage
  • PT Progressive Transition Waveguide for excellent pattern control with low distortion
  • Bi-Amp/Passive Switchable
  • Optional U-Bracket for easy installation

JBL AC2215/95 Specifications

Frequency Range (-10 dB)
42 Hz - 19 kHz
Frequency Response (±3 dB)
50 Hz - 17 kHz
Coverage Pattern
90Deg. x 50Deg.
Directivity Factor (Q)
8.9
Directivity Index (DI)
9.5 dB
Crossover Modes
Bi-amp/Passive switchable
Passive Crossover Slopes
4th order (24 dB/oct) Linkwitz-Riley HP & LP, 2.2 kHz
Transducer Power Rating (AES)
LF: 275 W (1100 W peak), 2 hrs
250 W (1000 W peak), 100 hrs
HF: 30 W (120 W peak), 2 hrs
Long-Term System Power Rating (IEC)
Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPL
Bi-amp mode:
LF: 121 dB-SPL cont avg (127 dB peak)
HF: 127 dB-SPL cont avg (133 dB peak)
Passive mode:
121 dB-SPL cont avg (127 dB peak)
System Sensitivity (1W @ 1m)
Passive mode: 97 dB SPL
Low Frequency Driver
Transducers: 1 x JBL M115-8A 380 mm (15 in) driver with 63 mm (2.5 in) voice coil
Low Frequency: Nominal Impedance
Transducers: 8 ohms
Low Frequency: Sensitivity
Transducers: 97 dB SPL (1W @ 1m, within operational band)
High Frequency Driver
Transducers: JBL 2412H compression driver, 25 mm (1 in) voice coil
High Frequency: Nominal Impedance
Transducers: 8 ohms
High Frequency: Sensitivity (1W @ 1m)
Transducers: 112 dB SPL
Enclosure
Trapezoidal with 15 degree side angles, 16 mm exterior grade 11-ply Finnish birch plywood
Suspension Attachment
15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish
Black DuraFlex finish
Grille
Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
Input Connector
NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through
Environmental Specifications
Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D)
637 x 422 x 504 mm (25.1 x 16.6 x 19.9")
Weight
23.6 kg (52 lbs)
Mfr #
AC2215/95
SKU
JBLAC221595
