JBL

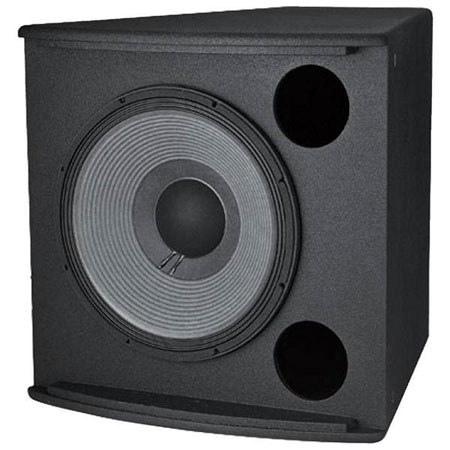

JBL AL7115 High Power Single 15" Low Frequency Loudspeaker, 47Hz - 3.0kHz Frequency Response

SKU: JBLAL7115 MFR: AL7115
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,544.00
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the JBL AL7115

The JBL AL7115 is a high power, low frequency loudspeaker system comprised of one 380 mm (15") Differential Drive low frequency driver in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. The AL7115 is part of JBL's AE Application Engineered series, a versatile family of loudspeakers for a wide variety of applications.

JBL AL7115 Features

  • 1 x 15" 2265H Differential Drive Low-Frequency Driver
  • Large vent area for high output with low distortion
  • Arrays with various AE Series mid-high frequency and compact 2-way models

JBL AL7115 Specifications

Frequency Range (-10 dB) 40 Hz - 4.2 kHz
Frequency Response (±3 dB) 47 Hz - 3.0 kHz
Transducer Power Rating (AES) 1000 W (4000 W peak), 2 hrs
Long-Term System Power Rating 600 W (2400 W peak), 100 hrs
Maximum SPL 50 Hz -125 Hz: 127 dB-SPL cont avg (133 dB peak)
125 Hz - 800 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity 50 Hz - 125 Hz: 97 dB
125 Hz - 800 Hz: 97 dB
Nominal Impedance 8 ohms
Low Frequency Driver 1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish Black DuraFlex finish
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG)wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through
Environmental Specifications Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D) 548 x 561 x 657 mm (21.6 x 22.1 x 25.9 in)
Weight 25.9 kg (57 lb)
