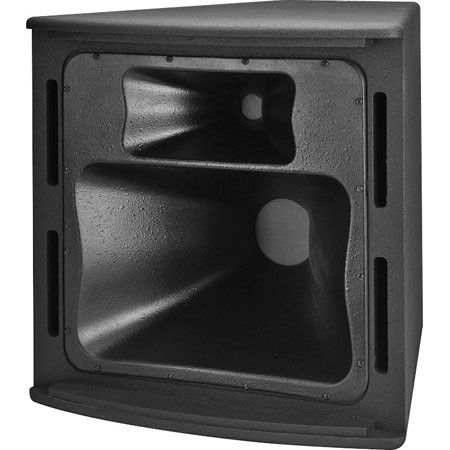

JBL AM7200/64-WRC High Power Mid-High Frequency System with Weather Protection Treatment

The JBL AM7200/64-WRC is a high power mid-high frequency loudspeaker system comprised of one 200 mm (8") CMCD (Cone Midrange Compression Driver) and one 38 mm (1.5") exit/75 mm (3") voice-coil HF compression driver. The multi-band PT (Progressive Transition) mid-high frequency waveguide provides well-controlled 60 degree x 40 degree coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation.

High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. The JBL AM7200/64-WRC is part of JBL's AE (Application Engineered) series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
