JBL AM7215/66 High Power 2-Way Loudspeaker with 1x15" LF & Rotatable Horn, 60x60 degree Coverage, Bi-Amp/Passive Switchable, White

SKU: JBLAM721566W MFR: AM7215/66-WH
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $114.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $174.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $399.95

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

More Buying Options

Product Highlights

  • 60 degree x 60 degree coverage
  • 2265H Differential Drive Low-Frequency Driver
  • High Frequency Compression Driver
  • Bi-Amp/Passive Switchable
  • White
  • 15" PA Speaker

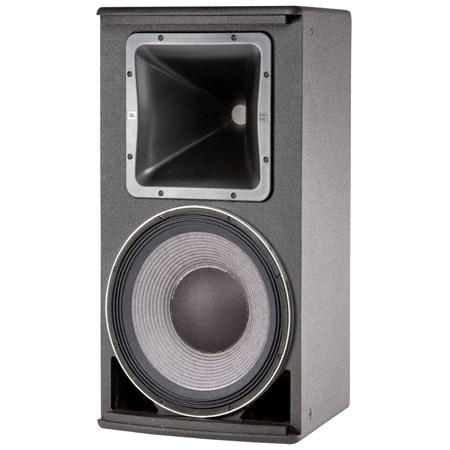

JBL AM7215/66: Picture 1 regular $2,520.00

About JBL AM7215/66

The JBL AM7215/66-WH is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15") low-frequency driver and 2432H high-frequency 38 mm (1.5") exit, 75 mm (3") voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 60 degree x 60 degree coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

The enclosure is constructed of multi-ply birch coated in JBL's rugged DuraFlex finish and is heavily braced to maximize low-frequency performance. The trapezoid enclosure is fitted with fifteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.

JBL AM7215/66 Features

  • 60 degree x 60 degree coverage
  • 2265H Differential Drive Low-Frequency Driver
  • 2432H High-Frequency Compression Driver
  • Large PT (Progressive Transition) waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable

JBL AM7215/66 Specifications

Frequency Range (-10 dB)
34 Hz - 20 kHz
Frequency Response (±3 dB)
40 Hz - 18 kHz
Coverage Pattern
60deg. x 60deg., rotatable waveguide
Directivity Factor (Q)
Directivity Index (DI)
11.6 dB
Crossover Modes
Bi-amp/Passive switchable
Passive Crossover Frequency
1.4 kHz
Transducer Power Rating (AES)
LF: 1000 W (4000 W peak), 2 hrs
750 W (3000 W peak), 100 hrs
HF: 100 W (400 W peak), 2 hrs
Long-Term System Power Rating (IEC)
Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL
Bi-amp mode:
LF: 128 dB-SPL cont avg (134 dB peak)
HF: 134 dB-SPL cont avg (140 dB peak)
Passive mode:
124 dB-SPL cont avg (130 dB peak)
System Sensitivity (1W @ 1m)
Passive mode: 96 dB SP
Transducers: Low Frequency Driver
1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm(3 in) dual voice coil
LF Nominal Impedance
8 ohms
LF Sensitivity
98 dB SPL (1W @ 1m within operational band)
Transducers: High Frequency Driver
JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
HF Nominal Impedance
8 ohms
HF Sensitivity (1W @ 1m)
114 dB SPL
Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment
15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
Input Connector
NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through
Environmental Specifications
Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D)
781 x 420 x 503 mm / 30.8 x 16.5 x 19.8 inches
27.2 kg (60 lb)
Mfr #
