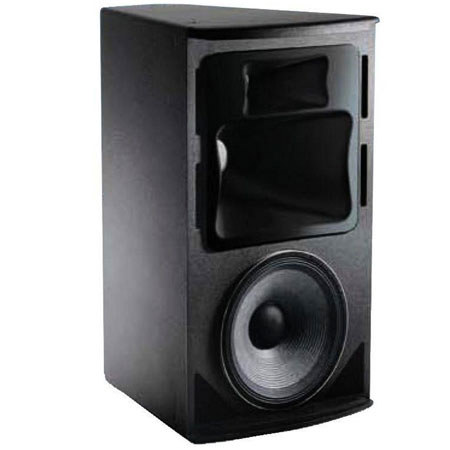

JBL AM7315/64-WRC 15" 3-Way Full Range Installation Speaker with Weather Protection Treatment

The JBL AM7315/64-WRC is a high power 3-way full-range loudspeaker system comprised of one 15" Differential Drive low frequency driver, one 8" CMCD (Cone Midrange Compression Driver) and one 1.5" exit, 3" voice-coil HF compression driver. The multi-band PT (Progressive Transition) mid-high frequency waveguide provides well-controlled 60 x 40 degree coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation.

High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. The JBL AM7315/64-WRC is part of JBL's AE (Application Engineered) series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
