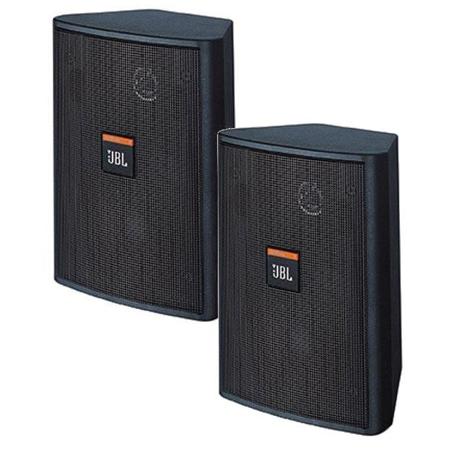

JBL Control 23 High Output Two-Way Mid/High Frequency Loudspeaker, Black, Pair

JBL
SKU: JBLC23 MFR: CONTROL 23

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $14.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $32.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $75.95

Our Price

$208.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • 3.5" Polypropylene coated woofer
  • 0.5" Titanium coated tweeter

About JBL

The JBL Control 23 is the most compact of JBL Professional's Control Contractor Series indoor/outdoor loudspeakers making it a perfect choice for patios, foyers, retail or other applications where foreground/ background music and paging are required, with minimum aesthetic impact. The unique and global patent pending InvisiBall mounting hardware is included in each system and makes short work of permanent installation.

The InvisiBall mounting method adds the benefit of vertical rotation of up to 37deg. off-axis and horizontal rotation of up to 44deg. off-axis. Because InvisiBall adjustments are made through a hidden access behind the logo badge, the grill never needs to be removed and there exists a high degree of theft deterrence as well.

The Control 23 readily accepts a variety of paints and finishes to match any decor. Weather resistance is maximized by coating the woofer cone in polypropylene and terminating its circumference in JBL's WeatherEdge, a seamless, rubberized extension of the woofer surround that provides added protection to critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance against sun, salt and moisture. Zinc plated grilles resist rusting.

JBL Features

  • Components: 3.5 in Polypropylene coated woofer, .5 in Titanium coated horn loaded tweeter
  • Built-in InvisiBall mounting hardware
  • Weather resistant enclosure and transducers
  • Readily paintable to match decor
  • 90deg. x 90deg. high frequency horn
  • Overload Protection Circuitry
  • Sensitivity: 86 dB SPL, 1 W, 1m

JBL Specifications

Frequency Range (-10 dB)
85 Hz to 22 kHz
Continuous Program Power Capacity
50 Watts
Sensitivity
86 dB SPL, 1W, 1m
Directivity Factor (Q)
4.8
Directivity Index (DI)
6.8
Nominal Impedance
8 ohms
Crossover Frequency
3.5 kHz
Low Frequency Driver
88 mm (3.5 in) Polypropylene cone w/WeatherEdge
High Frequency Driver
13 mm (.5 in) Titanium coated polycarbonate
Enclosure Material
HIPS (High Impact Polystyrene)
Overload Protection
Full-Range power limiting to protect network and transducers
Termination
Spring terminals, accepts banana plug
Environmental
Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
Dimensions (H x W x D)
193 x 140 x 111 mm (7.6 x 5.5 x 4.4 in)
Weight
1.8 kg (4 lbs)
Mfr #
CONTROL 23
SKU
JBLC23
