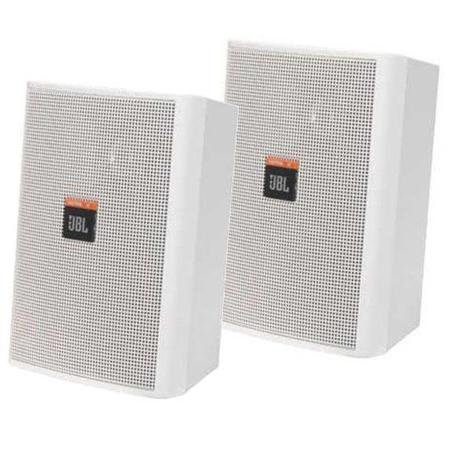

JBL Control 23T 2-Way Ultra-Compact Indoor/Outdoor Loudspeaker with Built-in Transformer, 3.5" Woofer, 0.5" Tweeter, Pair, White

JBL
SKU: JBLC23TWH MFR: CONTROL 23T-WH
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $14.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $32.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $75.95

Our Price

$228.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • 3.5"" Polypropylene coated woofer
  • 0.5"" Titanium coated tweeter

About JBL

The JBL Control 23T (White) is the most compact of JBL Professional's Control Contractor Series indoor/outdoor loudspeakers making it a perfect choice for patios, foyers, retail or other applications where foreground/background music and paging are required, with minimum aesthetic impact. The Control 23T can be used in either 70.7V or 100V distributed-line sound systems. The single power tap is 5W at 70.7V and 10W at 100V.

The unique InvisiBall mounting hardware is included in each system and makes short work of permanent installation. In addition to rapid installation, the InvisiBall mounting method adds the benefit of vertical rotation of up to 37deg. and horizontal rotation of up to 44deg.. Because InvisiBall adjustments are made through a hidden access behind the logo badge, the grill never needs to be removed, while providing a high degree of theft deterrence.

The Control 23T readily accepts a variety of paints and finishes to match any decor. Weather resistance is maximized by coating the woofer cone in polypropylene and terminating its circumference in JBL's WeatherEdge, a seamless, rubberized extension of the woofer surround that provides added protection to critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance against sun, salt and moisture. Zinc plated grilles resist rusting in the harshest conditions.

JBL Features

  • Isolation transformer for 70.7 V / 100 V distributed-line sound systems
  • Components: 3.5 in Polypropylene coated woofer, 0.5 in Titanium coated horn loaded tweeter
  • Built-in InvisiBall mounting hardware
  • Weather resistant enclosure and transducers
  • Readily paintable to match decor
  • 130 mm (5.25 in ) polypropylene coated woofer, 10 mm (.75 in ) titanium coated horn-loaded tweeter
  • 90deg. x 90deg. high frequency horn

JBL Specifications

Frequency Range (-10 dB)
100Hz to 21kHz
Power Capacity
Components and Network: 50 Watts continuous program
Transformer: 5W @ 70V, 10W @ 100V (IEC pink noise, 100 hrs.)
Nominal Coverage
90deg. x 90deg.
Nominal Output
70.7V Input: 89 dB
100V Input: 92 dB
Directivity Factor (Q)
4.8
Directivity Index (DI)
6.8
Nominal Impedance
8 ohms
Crossover Frequency
3.5kHz
Low Frequency Driver
88mm (3.5in) Polypropylene cone with WeatherEdge
High Frequency Driver
13mm (.5in) Titanium coated polycarbonate
Enclosure Material
HIPS (High Impact Polystyrene)
Overload Protection
Full-Range power limiting to protect network and transducers
Termination
Spring terminals, accepts banana plug
Environmental
Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
Dimensions (H x W x D)
193 x 140 x 111 mm (7.6 x 5.5 x 4.4 in)
Weight
1.8kg (4 lbs)
Mfr #
CONTROL 23T-WH
SKU
JBLC23TWH
