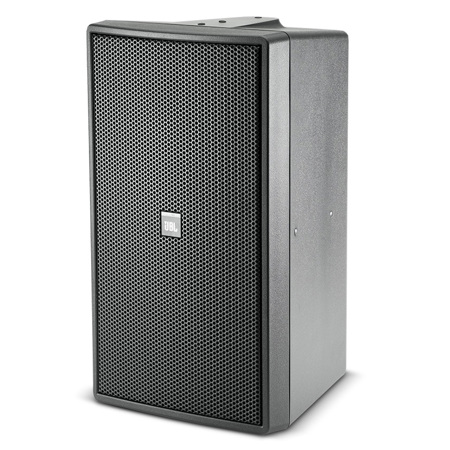

JBL C29AV-WH-1 8" 2-Way Indoor/Outdoor Monitor Speaker, Black, Single

SKU: JBLC29AV1

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

JBL C29AV-WH-1 Specifications

  • Frequency Range (-10 dB)

    37 Hz -18 kHz

  • Frequency Response (+/- 3 dB)

    43 Hz - 15 kHz

  • 100 Hr Power Capacity

    300 Watts Continuous Program Power
    150 Watts Continuous Pink Noise

  • Maximum SPL @ 1m

    Short-Term: 118 dB; Long-Term: 112 dB

  • Nominal Sensitivity

    90 dB, 1W @ 1 m (3.3 ft)

  • Nominal Coverage Angle

    110Deg. H x 85Deg. V, rotatable

  • Directivity Factor (Q)

    6.7, averaged 500 Hz to 16 kHz

  • Directivity Index (DI)

    8.3 dB, averaged 500 Hz to 16 kHz

  • Nominal Impedance

    8 ohms

  • Minimum Impedance

    6.3 ohms @ 230 Hz 3.3 ohms @ 4.1 kHz

  • Crossover Type

    3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency

  • Transformer Taps

    70V: 110W, 55W, 28W & 14W
    100V: 110W, 55W & 28W
    Thru Position: 8 ohm nominal

  • Low Frequency

    200 mm (8 in) Kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fi berglass former

  • High Frequency

    25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround

  • Enclosure Material

    High impact polystyrene

  • Grille

    Thermoset composite coated steel

  • Overload Protection

    Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during extreme overload conditions

  • Environmental

    IEC 529 IP-X4 splashproof rating. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray

  • Termination

    Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2)

  • Dimensions (H x W x D)

    20.5 x 12 x 10.9" (520 x 306 x 277mm)

  • Weight

    26.8 lbs (12.2kg)

2 Accessories for JBL C29AV-WH-1 8" 2-Way Indoor/Outdoor Monitor Speaker, Black, Single

  • All Accessories (2)
  • Speaker Accessories (1)
  • Monitoring Accessories (1)

About JBL C29AV-WH-1

The JBL C29AV-1 8" 2-Way Indoor/Outdoor Monitor Speaker (Black) provides improved voicing for extremely flat, high fidelity performance, extended bandwidth and well-controlled defined coverage from a compact loudspeaker. The rotatable high-frequency horn allows use of the speaker in either vertical or horizontal orientation. Consistent coverage ensures excellent sound character throughout the listening area. Moderate magnetic shielding allows use of the speaker as close as 230 mm (9") to video monitors.

The top-quality line distribution transformer, designed for minimal insertion loss and reduced saturation, allows use of either 70V or 100V distributed speaker lines. In bypass position, the 8Ohm impedance allows use of multiple speakers on a loudspeaker line.

The included InvisiBall mounting method is simple to install, aims easily and provides a high degree of theft deterrence. InvisiBall allows horizontal rotation of up to 41deg. off-axis and vertical rotation of up to 36deg. (horn end inward) or 23deg. (woofer end inward). Attachment points for the optional MTC-29UB U-bracket allows for compact installation.

Weather resistance has been maximized. The woofer's cone is made of Kevlar, surround is pure butyl rubber and the driver basket is rear loaded to minimize direct exposure. The compression driver's diaphragm is pure titanium. The grille is thermoset composite coated and comes with foam to minimize incursion of water. Nickel/zinc rust-resistant terminals ensure a secure input connection. An MTC-PC2 sealed-entrance cover is included to further protect the speaker's terminals. JBL's exclusive SonicGuard overload protection is virtually inaudible to the listener, ensuring reliability while providing full fidelity sound.

JBL C29AV-WH-1 Features

  • Incredible Sound Quality: The extremely smooth, flat frequency response with extended bandwidth gives your audience the best quality sound while the rotatable horn allows you to direct the audio at that sweet spot in the audience
  • InvisiBall Mounting System: For mounting applications the InvisiBall System works exceptionally well. It installs easily, gives you the reliable support you need while still allowing you the flexibility to adjust your speakers for just the right sound. Not to mention its theft deterrent qualities
  • SonicGuard: JBL's trademarked SonicGuard overload protection is inaudible to the listener but it ensures they hear a full fidelity sound throughout the entire performance
  • Weather Resistant: If you're a mobile musician and outdoor and indoor venues round out your schedule, then the Control 29AV-1 has you covered

Key Features

  • Incredible Sound Quality
  • InvisiBall Mounting System
  • Full fidelity sound throughout entire performance
  • Weather Resistant

What's in the box:

  • JBL C29AV-1 8 " 2-Way Monitor Speaker
  • MTC-PC2 Input Panel Cover
  • InvisiBall Mounting Base
  • InvisiBall 6 x 260mm Hex Wrench
  • Owner's Manual
  • JBL 5 Years Limited Warranty
