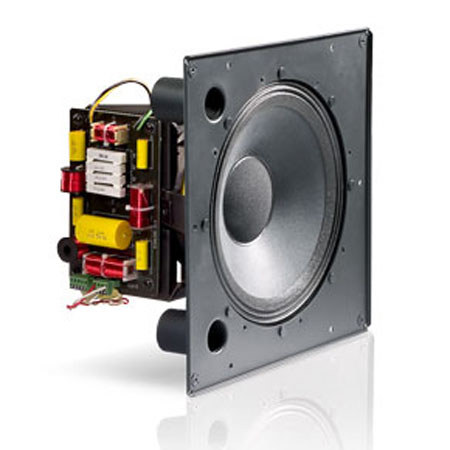

JBL Control 322C 12" Coaxial Ceiling Speaker with Medium Format Compression Driver
What's Included With This Item:
- JBL Control 322C 12" Coaxial Ceiling Speaker
- Pre-Attached Ported Baffle
- JBL 5 Years Limited Warranty
The JBL Control 322C delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker. The low frequency cone performs as a true 12 inch (300 mm) diameter waveguide for the high frequencies. A unique metal throat transitions seamlessly to the horn to eliminate high frequency beaming which is common among this category of speaker. The result is a coaxial speaker with extremely consistent 90deg. coverage on a broadband basis.
Component features include a Kevlar-reinforced low frequency cone for reliability, well-damped surround for smooth frequency response, high temperature 75 mm (3 in) voice coil and a reduced distortion design through saturated-gap magnet geometry. The high efficiency medium-format high compression driver features a radial slot phase plug for a smooth, extended high frequency response, along with a neodymium magnet for low installation weight.
The Control 322CT is easy to install. The innovative EZRail feature built into the metal baffle temporarily holds one side of the speaker baffle in place until the installer can affix the baffle to the backcan with screws. The removable multi-pin locking connector, with secure screw-down terminals, allows for pre-wiring the input wires for easy clip-on convenience during installation.
|Frequency Range (-10 dB)||32 Hz - 20 kHz|
|Frequency Response (±3 dB)||48 Hz - 19 kHz|
|Coverage Pattern||90Deg. conical, broadband (Avg 1k - 16kHz)|
|Directivity Factor (Q)||9 (1k - 16kHz)|
|Directivity Index (DI)||9.5dB (1k - 16kHz)|
|Long-Term System Power Rating, IEC||400 W (1600 W peak), 2 hrs
250 W (1000 W peak), 100 hrs
|Sensitivity (2.83V@ 1m)||95 dB4 measured half-space
100 dB5 computed for competitive comparison
|Maximum SPL||121 dB cont ave (124 dB peak)|
|Crossover Network||1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF.|
|Nominal Impedance||8 ohms|
|Low Frequency Driver||Kevlar reinforced cone, 75 mm (3 in) voice coil|
|High Frequency Driver||JBL 2407H neodymium-magnet medium-format compression driver with 37 mm (1.5 in) diaphragm|
|Input Connector||Removable locking connector with screw-down terminals.
Max wire 12 AWG (2.5 mm2) ( + in, + loop out, - loop out, - in)
|Baffle||Metal, 366 x 366 mm (14.4 x 14.4 in), driver pre-mounted to baffle, ported, EZRail for easier installation to backbox|
|Grille Attachment to Baffle||4 pcs 4 mm machine screws in corners|
|Dimensions (H x W x D)||14.4 x 14.4 x 8.8" (366 x 366 x 223mm)|
|Weight||20 lb (9.1 kg)|
