JBL

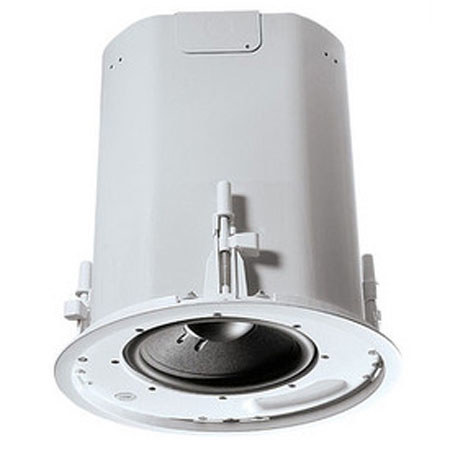

JBL C40CS/T-PL Direct-Radiating In-Ceiling Subwoofer with 8" Driver, Pair

SKU: JBLC40CSTPL MFR: C40CS/T-PL
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$778.00 $31 per week
Free Expedited Shipping
Qty:
Add to Wishlist

Protect your investment

About the JBL C40CS/T-PL

The JBL Control 40CS/T is a direct radiating, high impact, 8" subwoofer with a built-in passive crossover network enabling the Control 40CS/T to be used as part of a subwoofer-satellite system. When combined with the Control 42, the Control 40CS/T offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact. The system can also be used via an active crossover design with the rest of the Control Contractor in-ceiling line for superior bass response and can be operated off a 70V / 100V distributed line or in direct mode.

JBL C40CS/T-PL Includes

  • JBL C40CS/T-PL Direct-Radiating In-Ceiling Subwoofer
  • Owner's Manual
  • 4 x Screw
  • 4 x Rail Tilebridge
  • 2 x Label (Cutout Template)
  • C-Bracket
  • Carton (Insert Top-A)
  • Carton (Insert Median)
  • Carton (Inner)
  • Beauty Carton with Artwork
  • JBL 5 Years Limited Warranty

JBL C40CS/T-PL Features

  • Extended Bass Response with Maximum Impact
  • Passive Crossover Network for Easy to Install Subwoofer-Satellite Systems
  • Switchable 70V/100V or Low-Z
  • Elegant design fits any decor

JBL C40CS/T-PL Specifications

Rated Impedance 8 Ohms (in bypass mode)
Frequency Response 50 Hz - 180 Hz (±3 dB)
Frequency Range 30 Hz - 300 Hz (-10 dB)
Power Capacity 200 Watts Continuous Program Power
100 Watts Continuous Pink Noise
Rated Maximum SPL 109 dB @ 1 m (3.3 ft) average, 115 dB peak (center of ceiling)
115 dB 1 m (3.3 ft) average, 121 dB peak (near corner)
Nominal Sensitivity (2.83V @ 1m) 95 dB (near corner), 89 dB (center of ceiling)
Low Frequency Driver 200 mm (8 in) with polypropylene cone, butyl rubber (124-58000-00)
System Aural Sweep Test 7V Input, 40 Hz - 300 Hz
Dimensions (Diameter x Depth) 13.6" x 13.6" (34.5 x 34.5 cm)
Weight 17.9 lb (8.1 kg)
