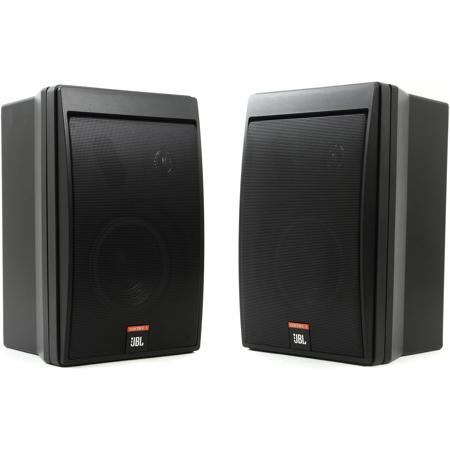

The JBL Control 5 is a high performance, wide range control monitor suitable for use as the primary sound source in a variety of applications. Smooth, extended frequency response combines with wide dynamic capabilities to provide acoustic performance that makes the Control 5 ideal for recording studios, audio-video control rooms, remote trucks and broadcast studios. Clean, functional visual design makes the Control 5 also ideal for foreground music systems, moderate level sound reinforcement, discotheques and music playback systems.
A 165 mm (6-1/2") low-frequency driver provides solid, powerful bass response to 50 Hz. High-frequency response to 20 kHz is handled by a pure titanium 25 mm (1") dome. Both transducers are magnetically shielded, allowing for use in close proximity to video monitors. The dividing network incorporates protection circuitry to prevent system damage and utilizes high quality components including bypass capacitors for outstanding transient accuracy.
|Frequency Response||75Hz to 20kHz (+/-3dB)|
|Power Capacity||175 Watts|
|Nominal Sensitivity||89dB SPL, 1W, 1m (3.3ft)|
|Low Frequency Driver||6- 1/2 in. (165 mm) low frequency loudspeaker|
|High Frequency Driver||1 in. (25mm) pure titanium dome tweeter|
|Enclosure Material||Polypropylene structural foam|
|Input Connections||Spring Terminal (adapted to accept dual banana plugs)|
|Dimensions||15-1/4 in. x 9-7/8 in. x 9 in. (387 mm x 251 mm x 229 mm)|
|Weight||10 lbs. (4.5 kg) each|
