JBL

JBL Control CRV-WH Versatile High Design 4" Indoor/Outdoor 70/100V Loudspeaker, White, Single

SKU: JBLCCRVWH MFR: CONTROLCRV-WH
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$261.00 List Price

Our Price

$209.00
Free Shipping
Qty:

Add to Wishlist

Protect your investment

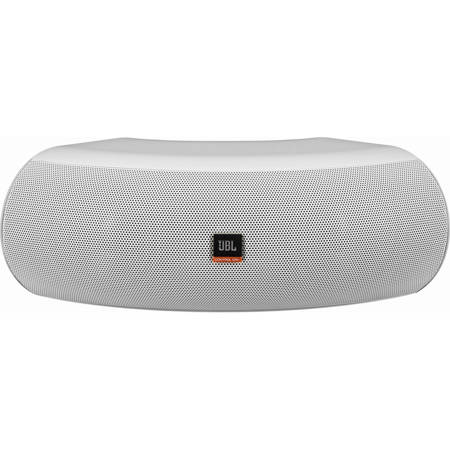

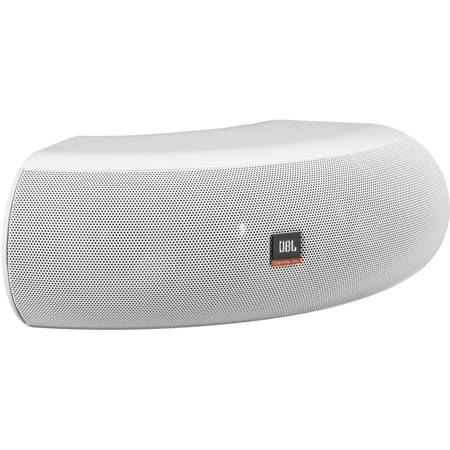

About the JBL Control CRV-WH Versatile

The JBL Control CRV-WH Loudspeaker brings high design and versatility to commercial applications such as restaurants, retail stores, lounges, theme bars, music cafes, hotels, boardrooms, boutiques, museums, leisure venues, outdoors, upscale lobbies and other foreground and background music and paging applications that require a fashionable look with superb sound quality.

Dual 100 mm (4") woofers feature Polyplas cones for durability, large 32 mm (1-1/2") voice coils wound on vented aluminum formers for high power handling and dual neodymium magnets for high output with low harmonic distortion. The 19 mm (3/4") tweeter features a titanium laminate dome tweeter, a shielded neodymium magnet and Ferrofluid cooling for maximum power handling and reduced thermal compression. A bi-radial waveguide reduces high frequency variations in the frequency response across the listening area.

The advanced high-slope crossover network (36 dB per octave high-pass to the tweeter and 18 dB per octave low-pass to the woofers) provides natural midrange sound quality along with smooth pattern coverage in the crossover region.

JBL Control CRV speaker is exceedingly versatile with multiple installation possibilities. The JBL Control CRV speaker can be wall-mounted aimed straight out from the wall, angled down at a 45deg. aiming axis, mounted spanning the junction of a wall and ceiling or spanning the junction of a wall and another wall. At a junction, the unique curved shape of the speaker couples well with both boundary surfaces, forming a dual ground plane configuration, which increases the acoustic length of the speaker, providing additional spaciousness to the sound character and increased bass output.

In addition, two or three Control CRV speakers can be joined together to create loudspeaker solutions for a wide variety of coverage, appearance and mounting requirements. Using the optional PMB pole-mount bracket, four speakers can be joined together and suspended by a ceiling fan pole to form a cluster module with 360deg. horizontal coverage.

JBL Control CRV-WH Versatile Includes

  • JBL Control CRV-WH 4" Indoor/Outdoor 70/100V Loudspeaker
  • Corner/Wall-Mount Bracket with Cap
  • Screws
  • Trim Covers
  • JBL 5 Years Limited Warranty

JBL Control CRV-WH Versatile Features

  • Components: Dual 100 mm (4") woofers and 19 mm (3/4") titanium-laminate tweeter
  • Outdoor rated to IP-34 (per IEC 529)
  • Built-in 70V/100V multi-tap transformer for distributed loudspeaker lines, plus 4 ohm direct capability
  • Unique, contemporary, curved design with versatile mounting configurations
  • Professional-quality input terminals
  • Superb sound quality

JBL Control CRV-WH Versatile Specifications

Frequency Range (-10dB) 80 Hz - 20 kHz (half-space, on-wall)
60 Hz - 20 kHz (quarter space, at two-wall junction)
Power Handling 75 W Continuous Pink Noise, 2 hrs
60 W Continuous Pink Noise, 100 hrs
150 W Continuous Program Power
300 W Continuous Peak Power
Nominal Sensitivity 89 dB
Maximum SPL @ 1m 108 dB continuous average long-term (peaks of 114 dB)
Nominal Coverage Angle 105 Deg. horizontal x 80 Deg. vertical (2 kHz - 16 kHz, speaker in vertical orientation)
Directivity Factor (Q) 7.4 (2 kHz - 16 kHz)
Directivity Index (DI) 8.6 dB (2 kHz - 16 kHz)
Nominal Impedance 4 Ohms
Minimum Impedance 4.0 Ohms @ 320 Hz
Crossover Frequency and Type 2 kHz - 36dB/octave tweeter; 18dB/octave woofers
Transformer Taps 30 W, 15 W, 7.5 W at both 70 V and 100 V (plus 3.8 W at 70 V only) Thru position is 4 ohms
Low-Frequency Transducers Dual 4" (100 mm) PolyPlas, shielded woofer with dual neodymium magnets and 32 mm (1.25 in) voice coil on a vented aluminum former
High-Frequency Transducer 3/4" (19 mm) Titanium-laminate dome tweeter, shielded neodymium magnet Ferrofluid cooling
Enclosure Material ABS
Ports Screened to protect against ingress of pests
Environmental IP-34 rating, per IEC529. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray
Termination Screw-down terminal strip, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (No.6, No.8, or No.10 lug) plus bare wire up to 12 AWG / 2.5 mm
Safety Agency Rating Transformer is UL registered per UL1876
Dimensions 364 mm (14.4") wide, 251 mm (9.9") max depth including wall bracket, 262 mm (10.3") side depth, 127 mm (5") height
Weight 3.2 kg (7.05 lbs)
