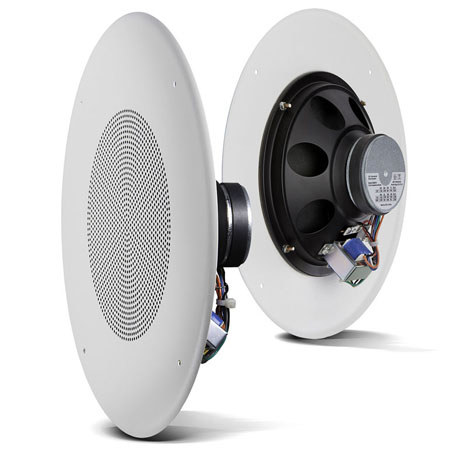

JBL CSS8018 8" Commercial Series Ceiling Speakers
See all JBL items

JBL CSS8018 8" Commercial Series Ceiling Speakers, 10W Multi-Tap Transformer

SKU: JBLCSS8018
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
JBL LCT 81C/T 2x2' 40W Low-Profile Lay-In Ceiling Tile Loudspeaker, Pair
$320.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

JBL CSS8018 Specifications

  • Driver Size (dual-cone)

    200 mm (8 in)

  • Driver Sensitivity (mid-range)

    97 dB (1W [2.83V], 1m, 2k - 6k Hz)

  • Frequency Range (-10 dB)

    Driver/Grille Assembly: 50 Hz - 17 kHz
    Installed in CSS-BB backcan: 90 Hz - 17 kHz

  • Coverage (2 kHz)

    110 deg.

  • Driver Continuous Power Handling1

    20 Watts

  • 100V Taps

    10W, 5W, 2.5W

  • 70V Taps

    10W, 5W, 2.5W, 1.3W

  • 25V Taps

    10W, 5W, 2.5W, 1.3W

  • Transformer Insertion Loss

    1.5 dB Maximum

  • Transformer Connection

    Bare wire

  • Motor Mass

    283 g (10 oz)

  • Matching CSS Backcan

    CSS-BB8 (0.15 cu ft)

  • Other Compatible Backcans

    MTC-81BB8 (0.26 cu ft)
    MTC-200BB6 (0.5 cu ft)
    MTC-300BB8 (1.0 cu ft)

  • Bolt Mounting Circle to Backcan

    4 points on 286 mm (11.25 in) diameter

  • Cutout Diameter

    Open-back: 216 mm (8.5 in)
    In CSS-BB backcan: 295 mm (11.7 in)

  • Depth (behind grille)

    73 mm (2.9 in)

  • Grille Diameter

    327 mm (12.9 in)

  • Weight

    1.58 kg (3.5 lb)

About JBL CSS8018

The JBL CSS8018 is a high-output 8" in-ceiling speaker that provides full, clear audio in an unobtrusive design. The speaker has a 10W multi-tap transformer that supports 25, 70 and 100V distributed lines for connecting to virtually any pro sound system. This speaker fits the CSS-BB8 backcan (sold separately) for in-ceiling installations.

JBL CSS8018 Features

  • High-quality dual cone type ceiling speaker
  • Pre-assembled speaker / transformer / grille assembly
  • Suitable for most paging or background music applications, including retail stores, restaurants, schools and other facilities
  • Very high sensitivity provides maximum sound levels using minimal amplifier power

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-quality dual cone type ceiling speaker
  • Pre-assembled speaker / transformer / grille assembly
  • Ideal for most paging or background music applications
  • Provides maximum sound levels using minimal amplifier power
  • Very high sensitivity

What's in the box:

  • JBL CSS8018 8 " Commercial Series Ceiling Speakers
  • 4 x M4 40 mm Sheet Metal Screws
  • JBL 5 Years Limited Warranty
