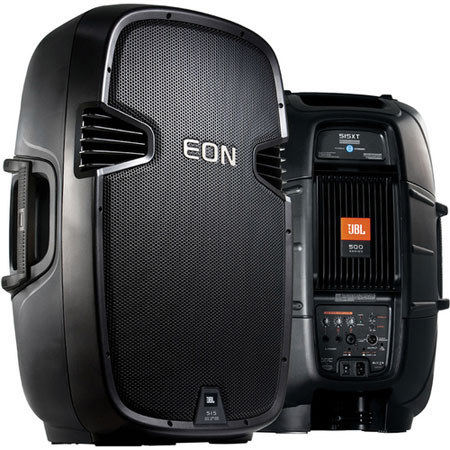

JBL EON 515XT 15 Two-Way Bass-Reflex Powered Portable Speaker, 230V (Europe)
Your card will only be charged once item ships.
The JBL EON 515XT is a 15-inch, two-way, powered, portable speaker system. Capable of reproducing full bandwidth sound at high levels it offers the additional utility of a 3 channel built-in mixer. The 515XT is comprised of a 380 mm (15 in) Differential Drive woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100deg. H by 60deg. V waveguide. Both components are driven by the discrete channels of a Crown Hybrid Class-D integrated power amplifier. The input section contains all crossover functions, protection and mixer functionality.
The intelligent onboard mixer is perfectly suited to accommodate multiple input sources simultaneously. With two, ¼" TRS Phone jacks and one Neutrix combination jack, the mixer is capable of blending 3 discrete sources. The "loop-through" option allows for additional signal routing while the global bass and treble feature puts you in immediate control.
In addition to acoustic performance, the EON515XT features three full size deep-well handles, light weight and balanced ergonomics. The new generation of EON products offers true portability and ease of handling. Five standard M10 rigging points and integrated pole mount socket increase the system's utility. The extremely rugged polypropylene enclosure has been designed for main and 45deg. monitor orientation in the left and right hand configuration. A full screen-backed, powder coated steel grille offers additional protection for both the woofer and compression driver components.
|Maximum SPL Output||132 dB|
|Frequency Range (-10 dB)||39 Hz -20 kHz|
|Frequency Response (±3 dB)||42 Hz - 18 kHz|
|Input Connectors||2 x 1/4" TRS phone jacks balanced/unbalanced 1 x XLR / 1/4" TRS combo jack with XLR loop through|
|Input Impedance||14k ohms|
|Signal Indicators||Limit: Red LED indicates limiter active condition
Signal: Green LED indicates signal present
Mic: Indicates the MIC/LINE switch is in the "MIC" position
EQ: Individual Bass and Treble controls, center detent, 6 dB cut and boost
Bass +/- 6 dB (200 Hz turnover frequency)
Treble +/- 6 dB (4 kHz turnover frequency)
|Mic Input Gain||-Infinity to +40 dBu|
|Line Input Gain||Line Input Gain|
|Amplifier Design||Crown Class-D|
|System Power Rating||625 Watts (525 + 100)|
|LF Driver||1 x JBL 265F-1 380 mm (15") Differential Drive integrated woofer with dual 2" voice coils|
|HF Driver||1 x JBL 2414H 25.4 mm (1") annular polymer diaphragm, neodymium compression driver|
|Coverage Pattern||100deg. H x 60deg. V nominal|
|Crossover Frequency||1.7 kHz|
|Material||Polypropylene, multi-purpose main & monitor|
|Suspension / Mounting||36 mm pole socket with stabilizing screw, 5 x M10 suspension points|
|Handles||One left/right side, one on top, with rubber grip|
|Grille||Powder coated perforated steel with acoustically transparent cloth backing|
|Dimensions (H x W x D)||673 mm x 406 mm x 368 mm (26.5" x 16" x 14.5")|
|Weight||14.8 kg (32.5 lb)|
