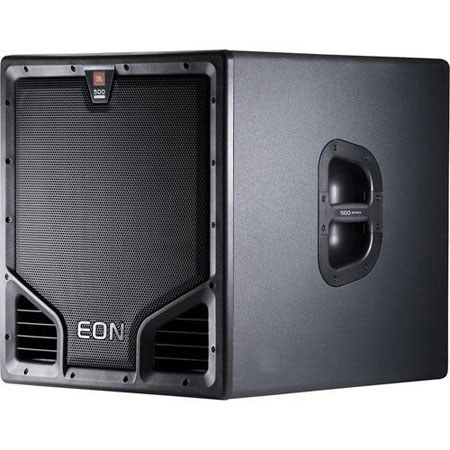

The JBL EON 518S is an 18-inch, direct radiating, high performance powered compact subwoofer system. Designed to extend low frequency performance of any EON system. It also offers the convenience of an integrated crossover and stereo loop-thru capability. The EON518S is comprised of a 460 mm (18") Differential Drive woofer is driven by a 500 watt Class-D digital amplifier.
The amplifier input panel offers stereo or mono line level inputs via balanced XLR connectors as well as a single-channel speaker level input via a ¼" TS phone jack. Signal processing, crossover functionality and limiting for the system is integrated into the input section functionality. Overall, subwoofer input sensitivity is controlled by a single easy grip knob and a simple switch enables polarity reversal for sub/satellite system optimization. Signal present and limit lights indicate performance status. An additional switch is provided to defeat the illuminated logo in theatre applications.
The enclosure has been engineered for maximum performance and absolute minimum size. Constructed of 18 mm plywood, it is coated in JBL's rugged DuraFlex finish. It also features a full screen-backed steel grille designed into a rugged copolymer bezel for maximum component protection. For comfortable portability, the EON518S features two large ergonomic rubber grip handles.
|Frequency Range (-10 dB)||36 Hz - 130 Hz|
|Frequency Response (±3 dB)||42 Hz - 100 Hz|
|Crossover Frequency||120 Hz (HPF selectable on outputs)|
|System Power Rating||500 W continuous, 1000 W peak|
|Distortion||Less than 0.1% at rated power|
|Maximum SPL||129 dB|
|Signal indicators||Limit: Red LED indicates input overload condition
Signal: Green LED indicates signal present
|Input Gain||- Infinity to +4 dBu|
|Input Impedance||Nominal 20k Ohms (balanced)|
|Polarity||0deg. or 180deg. phase shift|
|LF Driver||1 x JBL 268G 460 mm (18") Differential Drive integrated woofer with dual voice coils, 4 ohm impedance|
|Enclosure||18 mm, plywood|
|Suspension / Mounting||36 mm pole socket on top|
|Grille||Powder coated perforated steel with acoustically transparent black screen backing|
|Input Connectors||Balanced XLRs with loop through (stereo) to balanced XLR satellite outputs. ¼" Speaker level input|
|XLR Pin Assignments||Pin 2 (+), Pin 3 (-), Pin 1 (GND)|
|AC input||120 - 230 V, 50/60 Hz|
|Dimensions (H x W x D)||617 mm x 569 mm x 652 mm (24.3 in x 22.4 in x 25.7 in)|
|Weight||29.5 kg (65 lb)|
