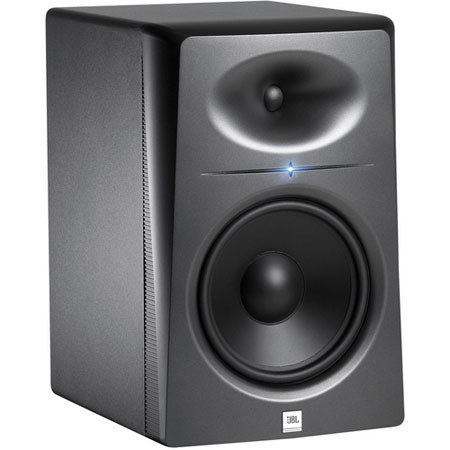

JBL LSR2328P/230 Bi-Amplified Studio Monitor with Magnetically-Shielded, 230V AC (Europe Only)
Your card will only be charged once item ships.
JBL LSR2328P/230 Bi-Amplified Two-Way Monitor is based on an 8" (203 mm) long excursion woofer and a 1" (25 mm) soft dome tweeter. It includes balanced XLR, balanced 1/4" TRS and RCA unbalanced input connectors to allow connection of professional mixing consoles, computer audio interfaces, audio visual equipment and consumer audio systems. A detented level control allows fine adjustment of individual speaker levels to balance each speaker in the system. Low frequency and high frequency trim controls let you tailor the speaker's response to preference or room acoustics.
A neoprene rubber pad on the bottom of the speaker provides acoustic isolation and increases stability when the speaker is placed on a speaker stand or a console top. Mounting points are included and the enclosure has been reinforced for safe mounting using industry-standard mounting hardware.
|Frequency Range||37 Hz - 20 kHz|
|Max SPL Continuous||Each / Pair: > 104 dB / > 110 dB|
|Max SPKL Peak||Each / Pair: > 117 dB / > 123 dB|
|Input Sensitivity||92 dB SPL / 1m @ -10dBV Balanced Input|
|Drivers (LF / HF)||8" (203 mm) 238G 1" (25 mm) 231H|
|LF Trim||+ 2 dB / -3 dB|
|HF Trim||+ 2.5 dB / - 2.5 dB|
|Input Connectors||Balanced XLR, 1/4" TRS, RCA|
|Amplifier Power||LF/HF: 95 W / 70 W|
|Crossover Frequency||2.0 kHz 4th-order Acoustic Linkwitz-Riley|
|Enclosure||18 mm (3/4 in) MDF|
|Dimensions (H x W x D)||397 mm x 254 mm x 335 mm (15.6 in x 10 in x 13.2 in)|
|Weight||12.7 Kg (28 lb)|
