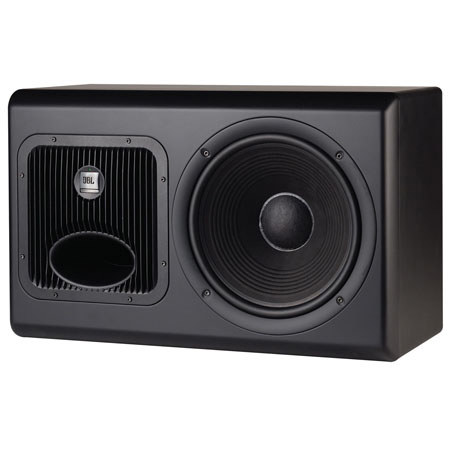

JBL LSR6312SP 12" Powered Studio Subwoofer System, 260W Amplifier, 28 - 80Hz Frequency Response
What's Included With This Item:
- JBL LSR6312SP 12" Powered Studio Subwoofer System
- RMC Calibration Kit
- Owner's Manual
- JBL 5 Years Limited Warranty
The LSR6312SP powered studio sub-woofer is designed to provide low frequency extension and sophisticated bass management capabilities in stereo and multi-channel applications where exceptional spectral accuracy and high-SPL are required. The system includes JBL's RMC (Room Mode Correction) circuit. The system is designed around JBL's 252F LF transducer, which uses dual-voice coils and a powerful neodymium magnet.
With the patented differential drive technology, power compression is kept to a minimum. An additional third coil located between the two drive coils acts as a dynamic brake to limit excess excursion and reduce audible distortion at the highest operating levels. The cone is made of a carbon fiber polypropylene composite forming a rigid piston area supported by a soft butyl rubber surround.
A 260-watt continuous power amplifier is integrated into the LSR6312SP system and provides correct drive levels for optimized frequency response. Amplification is class A-B in an all discrete topology. The sub woofer derives its input by summing Left, Center, Right and Direct LFE inputs. Subwoofer signals can be selectively derived from the front channels or from the Direct input alone using a simple Remote Bypass contact closure switch.
User-selectable settings are provided for -10 dBV, +4 and +8 dBu sensitivity. For calibration and level matching of the system, an Input Trim control can be inserted into the circuit for continuously variable attenuation of the system input. Additionally, the Direct input has a dedicated Input Trim. The LSR6312SP includes Left, Center and Right channel outputs to feed external satellite speakers. The LCR outputs are high-passed at 80 Hz. A 1/4" jack allows connection of a Remote LCR Bypass contact closure switch. When the switch is used, full-range signals are sent to the Left, Center and Right satellite speakers and the sub-woofer derives its feed from the Direct input only.
Sub-woofer low pass filtering uses a steep 5th order low pass section to minimize the possibility of localization of the sub-woofer's acoustic output.
High pass filtering for Left, Center and Right outputs is 12 dB/octave. For convenience, input receptacles are Neutrik "Combi" type, which accommodate both XLR and 1/4" connectors.
Six DIP switches on the input panel allow the user to precisely adjust the gain and response of the system. DIP switch one inserts a variable attenuator inserted into the circuit allowing the level to be trimmed from 0 to -13 dB. The Left, Center, Right and Direct inputs default to -10 dBV sensitivity. Using DIP switches 2 & 3 the user can set input sensitivity for all inputs to +4 dBu, +8 dBu or +12 dBu. A +4 dBu signal to any input will drive the output level of the LSR6312SP to 96 dB SPL at 1 meter with input sensitivity set to +4 dBu.
Switch 4 inverts the signal polarity of the sub-woofer feed. This is used to correct for placement mismatch between the sub-woofer and satellite spacing. Due to the varied placement options available in audio production environments, it is suggested that this switch be adjusted after the final placement of the system has been determined.
|RMC Frequency Adjust||24 Hz - 96 Hz (18 centers)|
|Sub-woofer Bypass Connector||1/4" tip-sleeve jack|
|Remote RMC Defeat Connector||1/4" tip-sleeve jack|
|LF Alignment||0, -4 dB|
|LF Sensitivity (+4 dBu)||-10 dBv, +4, +8, +12 dBu|
|Direct Input LFE +10 dB||Push-on/push-off switch|
|LF Output Trim||0 to -13 dB|
|Remote Bypass Connector||1/4" tip-sleeve jack|
|Low Frequency Summed Output||Neutrik XLR, balanced (pin 2 hot)|
|Left, Center and Right Outputs||Neutrik XLR, balanced (pin 2 hot)|
|Left, Center, Right and Direct Inputs||Neutrik Combi XLR-1/4"|
|Transducer: Impedance||2 ohms|
|Transducer: Cone Type||Carbon fiber composite|
|Transducer: Magnet Type||Neodymium, with integral heat sink|
|Transducer: Voice Coil||50 mm (2 in) Differential Drive with dynamic braking coil|
|Transducer: Diameter||300 MM (12 in)|
|Low Frequency Model||252F|
|AC Input Voltage Operating Range||±15%|
|Low Frequency: THD + N, 1/2 Power||<0.05%|
|Sine Wave Power Rating||260 watts (<0.5% THD into rated impedance)|
|Low Frequency Topology||Class A-B, all discrete|
|Power/Clip/Bypass Indicators||Green LED - normal operation
Amber LED- bypass mode
Red LED- Limiter activated
|Power Nonlinearity (20 Hz - 200 Hz)||30 Watts: <0.4 dB
100 Watts: <1.0 dB
|Calibrated Input Sensitivity||XLR or 1/4"
Selectable -10 dBV, +4 dBu, +8 dBu: 96 dB / 1 m
|Maximum Peak SPL||>115 dB SPL / 1 m (35 Hz - 80 Hz)|
|Maximum Continuous SPL||>112 dB SPL / 1 m (35 Hz - 80 Hz)|
|Distortion, 96 dB SPL/ 1 m||Low Frequency (<80 Hz)
2nd Harmonic: <2%
3rd Harmonic: <1%
|Low-To-High Crossover Frequency||80 Hz (4th order electro acoustic Linkwitz-Riley)|
|Enclosure Resonance Frequency||28 Hz|
|Low Frequency Extension||User controls set to default
-3 dB: 34 Hz
-10 dB: 26 Hz
|Frequency Response (-6 dB)||28 - 80 Hz|
|Baffle Material||Injection molded structural ABS|
|Enclosure Volume||50 liter (1.8 cu ft)|
|RMC Makeup Gain||0 to +6 dB|
|RMC Q Adjust||1/20th to 1/2 Octave (21 steps)|
|Enclosure Construction||19 mm (3/4 in) MDF|
|Mounting||4 threaded mounting points conforming to industry standard square pattern 127 x 70 mm (5 x 2.75 in) center to center. M6 metric threads.|
|RMC Depth Adjust||0 - 14 dB (cut only)|
|Dimensions (W x H x D)||63.5 x 39.4 x 29.2 cm (25.0 x 15.5 x 11.5 in)|
|Weight||22.7 kg (50 lb)|
