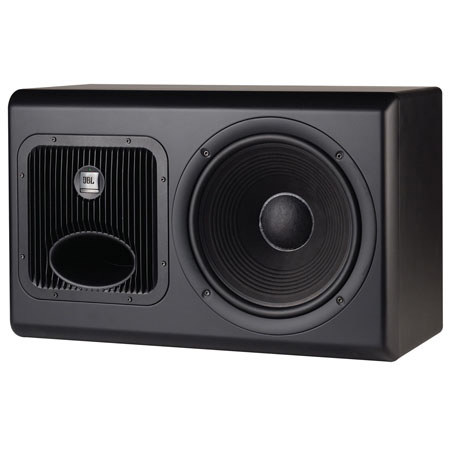

JBL LSR6312SP Linear Spatial Reference Powered Studio Subwoofer System with RMC, 260 watt Continuous Output Power, 230V AC Input Voltage

SKU: JBLL6312SP2 MFR: LSR6312SP/230
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,080.00 List Price

Our Price

$1,679.00
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the JBL LSR6312SP

The JBL LSR6312SP/230 Powered Studio Subwoofer is designed to provide low-frequency extension and sophisticated bass management capabilities in stereo and multi-channel applications where exceptional spectral accuracy and high-SPL are required. The system includes JBL's RMC (Room Mode Correction) circuit. The system is designed around JBL's 252F LF transducer, which uses dual voice coils and a powerful neodymium magnet. With the patented Differential Drive technology, power compression is kept to a minimum. An additional third coil located between the two drive coils acts as a dynamic brake to limit excess excursion and reduce audible distortion at the highest operating levels. The cone is made of a carbon fiber polypropylene composite forming a rigid piston area supported by a soft butyl rubber surround.

A 260-watt continuous power amplifier is integrated into the LSR6312SP/230 system and provides correct drive levels for optimized frequency response. Amplification is class A-B in an all discrete topology.

The subwoofer derives its input by summing Left, Center, Right and Direct LFE inputs. Subwoofer signals can be selectively derived from the front channels or from the direct input alone using a simple Remote Bypass contact closure switch. User-selectable settings are provided for -10 dBV, +4 and +8 dBu sensitivity. For calibration and level matching of the system, an Input Trim control can be inserted into the circuit for continuously variable attenuation of the system input. Additionally, the direct input has a dedicated Input Trim. The LSR6312SP/230 includes Left, Center and Right channel outputs to feed external satellite speakers. The LCR outputs are high-passed at 80 Hz. A 1/4" jack allows connection of a Remote LCR Bypass contact closure switch. When the switch is used, full-range signals are sent to the Left, Center and Right satellite speakers and the subwoofer derives its feed from the direct input only.

Subwoofer low pass filtering uses a steep 5th order low pass section to minimize the possibility of localization of the subwoofer's acoustic output. High pass filtering for Left, Center and Right outputs is 12 dB/octave. For convenience, input receptacles are Neutrik "Combi" type, which accommodate both XLR and 1/4" connectors.

Six DIP switches on the input panel allow the user to precisely adjust the gain and response of the system. DIP switch one inserts a variable attenuator inserted into the circuit allowing the level to be trimmed from 0 to -13 dB. The Left, Center, Right and Direct inputs default to -10 dBV sensitivity. Using DIP switches 2 & 3 the user can set input sensitivity for all inputs to +4 dBu, +8 dBu or +12 dBu. A +4 dBu signal to any input will drive the output level of the LSR6312SP/230 to 96 dB SPL at 1 meter with input sensitivity set to +4 dBu.

Switch 4 inverts the signal polarity of the subwoofer feed. This is used to correct for placement mismatch between the subwoofer and satellite spacing. Due to the varied placement options available in audio production environments, it is suggested that this switch be adjusted after the final placement of the system has been determined.

Switch 5 adjusts the low-frequency spectrum to compensate for the boundary conditions that exist when a subwoofer is placed against a wall or in a corner. Switch 5 reduces the output level below 50 Hz by 2 dB.

Discrete and bypass operation of the subwoofer can be switched via a remote control plugged into a 1/4" jack on the rear of the enclosure. Shorting the ring and tip will remove high-pass filtering from the left, center and right inputs, thus sourcing the subwoofer from the direct input only.

For compatibility with film industry playback standards, a +10 dB LFE gain is provided and engaged by a push-on/push-off switch on the rear electronics panel. This operates only on the direct input and its purpose is to restore proper level to the LF effects channel, which may have been previously attenuated by 10 dB during program processing.

JBL LSR6312SP Includes

  • JBL LSR6312SP Linear Spatial Reference Powered Studio Subwoofer
  • RMC Calibration Kit
  • Owner's Manual
  • JBL Warranty

JBL LSR6312SP Features

  • Multi-format powered subwoofer for Dolby Prologic, AC-3, DTS and other surround formats
  • RMC Room Mode Correction provides electronic control of response peaks due to room modes. RMC calibration kit included
  • 260 watt continuous output power amplifier
  • Sophisticated LCR bass management system
  • Direct LFE input with selectable +10 dB input gain
  • Summed output allows chaining of multiple LSR6312SP for multiple subwoofer systems
  • Differential Drive technology with dynamic braking for extended low frequency response and low power compression
  • High density baffle for low resonance and stable inertial ground
  • Linear Dynamics Aperture port design minimizes port turbulence and reduces power compression
  • Reinforced enclosure with standardized mounting points allow mounted installation

JBL LSR6312SP Specifications

Frequency Response (-6 dB) 28 - 80 Hz
Low Frequency Extension User controls set to default
-3 dB: 34 Hz
-10 dB: 26 Hz
Enclosure Resonance Frequency 28 Hz
Low-To-High Crossover Frequency 80 Hz (4th order electro-acoustic Linkwitz-Riley)
Distortion, 96 dB SPL/ 1 m Low Frequency (<80 Hz)
2nd Harmonic: <2%
3rd Harmonic: <1%
Maximum Continuous SPL >112 dB SPL / 1 m (35 Hz - 80 Hz)
Maximum Peak SPL >115 dB SPL / 1 m (35 Hz - 80 Hz)
Calibrated Input Sensitivity XLR or 1/4", Selectable -10 dBV, +4 dBu, +8 dBu: 96 dB / 1 m
Power Non-linearity (20 Hz - 200 Hz) 30 Watts: <0.4 dB
100 Watts: <1.0 dB
Power/Clip/Bypass Indicators Green LED - normal operation
Amber LED - bypass mode
Red LED - Limiter activated
Amplifier: Low Frequency Topology Class A-B, all discrete
Amplifier: Sine Wave Power Rating 260 watts (<0.5% THD into rated impedance)
Amplifier: THD + N, 1/2 Power <0.05%
Amplifier: AC Input Voltage 230VAC, 50 Hz
Amplifier: Operating Range ±15% (AC Input Voltage)
Transducer: Low Frequency Model 252F
Transducer: Diameter 300 MM (12 in)
Transducer: Voice Coil 50 mm (2 in) Differential Drive with dynamic braking coil
Transducer: Magnet Type Neodymium, with integral heat sink
Transducer: Cone Type Carbon fiber composite
Transducer: Impedance 2 ohms
Left, Center, Right and Direct Inputs Neutrik Combi XLR-1/4"
Left, Center and Right Outputs Neutrik XLR, balanced (pin 2 hot)
Low Frequency Summed Output Neutrik XLR, balanced (pin 2 hot)
Remote Bypass Connector 1/4" tip-sleeve jack
Direct Input LFE +10 dB Push-on/push-off switch
LF Output Trim 0 to -13 dB
LF Sensitivity (+4 dBu) -10 dBv, +4, +8, +12 dBu
Polarity Reverse In/Out
LF Alignment 0, -4 dB
RMC Defeat In/Out
Remote RMC Defeat Connector 1/4" tip-sleeve jack
Subwoofer Bypass Connector 1/4" tip-sleeve jack
RMC Frequency Adjust 24 Hz - 96 Hz (18 centers)
RMC Depth Adjust 0 - 14 dB (cut only)
RMC Makeup Gain 0 to +6 dB
RMC Q Adjust 1/20th to 1/2 Octave (21 steps)
Enclosure Construction 19 mm (3/4 in) MDF
Mounting 4 threaded mounting points conforming to industry standard square pattern 127 x 70 mm (5 x 2.75 in) center to center. M6 metric threads
Baffle Material Injection molded structural ABS
Enclosure Volume (net) 50 liter (1.8 cu ft)
Dimensions (W x H x D) 63.5 x 39.4 x 29.2 cm (25.0 x 15.5 x 11.5 in)
Weight 22.7 kg (50 lb)
