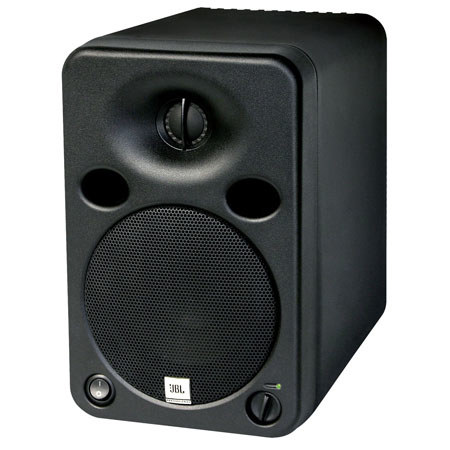

JBL LSR6325P-1 Linear Spatial Reference Bi-Amplified Studio Monitor

SKU: JBLL6325P1 MFR: LSR6325P-1
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$580.00 List Price

Our Price

$459.00 $18 per week
Free Expedited Shipping
Qty:
Add to Wishlist

Protect your investment

About the JBL LSR6325P-1

The JBL LSR6325P-1 Studio Monitor provides ultra-accurate response and exceptional SPL capability in a very compact form factor. THX PM3 approved, the LSR6325P-1 is ideal for stereo and surround recording, post-production and broadcast systems where space is limited but accuracy and high-output are required.

The LSR6325P-1 Studio Monitor combines JBL's latest in transducer and system technology and incorporates the LSR Linear Spatial Reference design to provide greater accuracy at the mix position. The Linear Spatial Reference (LSR) philosophy is based on a set of design goals that optimize the overall performance of the system in a variety of acoustic spaces.

Instead of focusing on a simple measurement such as on-axis frequency response, LSR design requires the system meet frequency-response criteria for 72 off-axis measurements. Carefully-controlled dispersion, achieved through transducer design, crossover frequency selection and engineering of the enclosure, ensures not just the on-axis sound, but also the reflected sound which reaches of the mix position is neutral. By incorporating LSR into the system design, the LSR6325P-1 delivers greater high and mid frequency accuracy to the mix position, in a broad range of production environments.

The 5.25" woofer is based on JBL's research and field proven experience in low distortion, high excursion designs. The cone forms a rigid piston and is supported by butyl rubber compliance. The motor structure incorporates Symmetrical Field Geometry (SFG) with an integral shorting ring for maximum linearity. The high excursion capability provides a substantial increase in dynamic range over typical transducer design. A cast aluminum basket provides advanced heat dissipation for low power compression. The powerful structure is shielded for use in close proximity to CRT monitors.

The high frequency device is a 1" composite diaphragm integrated with an Elliptical Oblate Spheroidal (EOS) Waveguide with 60 x 100 degree dispersion which is critical to the smooth spatial response required in today's working environments.

The LSR6325P-1 combines two high-power amplifier sections with an active crossover system, 100 watts of low-frequency power and 50 watts to the high-frequency section provide maximum dynamic range. A bi-color LED indicates power and any onset of clipping in either amplifier section.

Active crossover circuitry results in a 24 dB/Octave Linkwitz-Riley Electro acoustic response between low and high frequency devices for smooth transition in both the frequency and time domains. This results in exceptional imaging, a lack of time smear and superior off-axis response linearity. A variable level control and dual input sensitivities allow use with a broad range of professional and semi-professional equipment.

Balanced and unbalanced signals can be accommodated with an XLR input. An unbalanced RCA input is also provided. The frequency response can be gently tailored to compensate for placement and room absorption characteristics. Users can select between two different high frequency response contours. A low-frequency filter at 80 Hz can also be added for use with subwoofers that contain their own low pass filtering. A unique Boundary Compensation control adjusts the bass and mid-bass output for optimum performance when the system is positioned near a boundary, on the meter bridge of a console or work surface.

JBL LSR6325P-1 Includes

  • JBL LSR6325P-1 Linear Spatial Reference Bi-Amplified Studio Monitor
  • AC Power Cord
  • Owner's Manual
  • JBL 5 Years Speaker Components, 3 Year Amplifiers, 2 Years Enclosure Limited Warranty

JBL LSR6325P-1 Features

  • Bi-amplified studio reference monitor for near field monitoring, mobile vans, broadcast and TV control rooms
  • Lightweight for portability, high output for size
  • Dual front ported enclosure for optimized low frequency reproduction
  • Waveguide technology for optimized directivity
  • 150 Watts of total amplification
  • Built in high-pass filtering for use with optional subwoofer
  • Die-cast aluminum integrated baffle and cabinet construction
  • Integrated amplifiers provide optimized performance
  • Magnetically shielded for use in close proximity to computer and video monitors
  • Switchable multi-voltage power supply for transformer-free international use

JBL LSR6325P-1 Specifications

Frequency Response (+1, -2 dB) 70 Hz - 20 kHz
Enclosure resonance frequency 55 Hz
Low Frequency Extension -3 dB: 65 Hz
-6 dB: 56 Hz
-10 dB: 48 Hz (User controls set to default)
Low - High Frequency Crossover 2.3 kHz
4th-order Electroacoustic Linkwitz-Riley
Mid-High Frequency (150 Hz - 20 kHz) 2nd Harmonic: <0.5%
3rd Harmonic: <0.5%
Low Frequency (<150 Hz) 2nd Harmonic: <2%
3rd Harmonic: <3%
Maximum SPL (90 Hz - 20 kHz) >106 dB SPL / 1m
Maximum Peak SPL (90 Hz - 20 kHz) >109 dB SPL / 1m
Signal Input XLR, Balanced
RCA, unbalanced
Positive voltage applied to XLR Pin 2 (RCA tip) produces outward woofer motion
Calibrated Input Sensitivity XLR, +4 dBu: 96 dB SPL / 1 m
RCA, -10 dBV: 96 dB SPL / 1 m
AC Input Voltage 115 /230 VAC, 50/60 Hz (User Selectable)
AC Input Voltage Operating Range +/- 15%
AC Input Connector IEC
Long-Term Maximum System Power 110 watts (IEC265-5)
Self Generated Noise Level <10 dBA / 1 m
High Frequency Control (3 kHz - 20 kHz) +1.5 dB, 0 dB, -1.5 dB
Workstation Boundary Compensation Active or Bypass
Low Frequency Acoustic Alignment 36 dB/Octave Butterworth bi-pass at 40 Hz
36 dB/Octave Bessel hi-pass at 80 Hz (For use with Subwoofer)
Variable Input Attenuation 0 - 26 dB
Low Frequency Diameter Transducers: 134 mm (5.25 in)
Low Frequency: Voice Coil Transducers: 38 mm (1.5 in)
Low Frequency: Magnet Type Transducers: Ferrite with Integral Shielding
Low Frequency: Cone Type Transducers: Tempered Paper with Butyl Rubber Compliance
Low Frequency: Nominal Impedance Transducers: 8 ohms
High Frequency Diameter Transducers: 25 mm (1 in) diaphragm
High Frequency: Voice Coil Transducers: 25 mm (1 in)
High Frequency: Magnet Type Transducers: Ferrite with Integral Shielding
High Frequency: Diaphragm Type Transducers: Damped Titanium Composite
High Frequency: Nominal Impedance Transducers: 4 ohms
Low Frequency: Topology Amplifiers: Bridged Class A-B Monolithic
Low Frequency: Sine Wave Power Rating Amplifiers: 100 watts (<0.1% THD into rated impedance)
Low Frequency: THD+N, 1/2 Power Amplifiers: <0.05%
High Frequency: Topology Amplifiers: Class A-B, Monolithic
High Frequency: Sine Wave Power Rating Amplifiers: 50 watts (<0.1% THD into rated impedance)
High Frequency: THD+N, 1/2 Power Amplifiers: <0.05%
Grille Perforated Steel
Enclosure Volume (net) 6.5 liter (0.2 cu. ft.)
Low Frequency Vent Dual Linear Dynamic Aperture
Baffle Construction Diecast Aluminum
Cabinet Construction Diecast Aluminum
Mounting 4 threaded mounting points conforming to industry standard square pattern, 127 x 70 mm (5 x 2.75 in) 107.9 mm x 50.8 mm (4.25 x 2 in) center to center. M6 metric threads
Dimensions (W x H x D) 17.3 x 26.9 x 24.1 cm (6.8 x 10.6 x 9.5")
Weight 7.7 kg (17 lbs)
