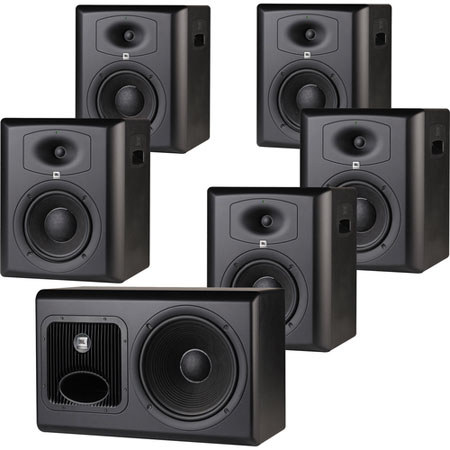

JBL LSR6328P/5.1 5.1 Surround System with 5 LSR6328P Studio Monitor, LSR6312SP Subwoofer System, Room Mode Correction System, 230V AC (International)

JBL
SKU: JBLL6328P51I MFR: LSR6328P/5.1INT

List Price: $10,752.17

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

19% Off

Our Price

$8,753.58
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About JBL LSR6328P/5.1

The JBL LSR6328P/5.1 5.1 Surround System is a professional-level surround sound mixing kit, which consists of five LSR6328P active monitors and a LSR6312SP powered subwoofer. Room Mode Correction calibration tools are included so you can tune your system to perform its best in your work space.

Each of the five LSR6328P monitors have a sturdy MDF cabinet that houses an 8" carbon-fiber woofer and a 1" titanium composite tweeter to provide a full frequency response with strong bass, smooth midrange and clear highs. Each driver has its own dedicated class A-B amplifier (250 watts for the low frequencies, 120 watts for the highs) that provides strong performance with very low distortion. The injection-molded ABS baffle with the elliptical waveguide creates a great image with a large sweet spot.

The LSR6312SP 12" studio subwoofer gives you low frequency extension and sophisticated bass management powered by a 260 watt amplifier. The patented Differential Drive keeps power compression to a minimum. At high operating levels, audible distortion is reduced through the additional third coil, which serves as a dynamic brake. You get even more help in the crystal clear audio realm with the inclusion of a sophisticated LCR bass management system, direct LFE input, a high density baffle and Linear Dynamics Aperture port.

JBL's trademarked Room Mode Correction (RMC) circuit provides electronic control of response peaks due to room modes. The included RMC calibration kit will help you eliminate bass problems in your mix position. For a complete surround sound mixing solution, the JBL LSR6328P/5.1 provides you with all the power and control you need to create dynamic professional mixes.

JBL LSR6328P/5.1 Features

  • JBL's patented Differential Drive technology with dynamic braking gives you extended low frequency response and low power compression
  • Left, Center and Right (LCR) outputs feed external satellite speakers and are high-passed at 80 Hz. With the inclusion of the Remote LCR Bypass contact closure switch full range signals are sent to the left, right and center satellite speakers and the Direct input is sent only to the subwoofer
  • The LSR6312SP is a multi-format powered subwoofer for Dolby Prologic, AC-3, DTS and other surround formats
  • JBL's RMC gives you electronic control of response peaks due to room modes and the calibration kit is included
  • Four M6 threaded mounting points for flexible installation options
  • Integrated, flush-mount handles for easy transportation
  • Magnetically shielded for use near video monitors
  • Bi-amplified system provides 370W of total power for a strong, low-distortion performance
  • XLR/TRS combo input
  • RMC system allows you to adjust the monitor for perfect performance in virtually any acoustic space
  • Sturdy MDF cabinet with injection-molded ABS baffle
  • Full frequency response from the 8" woofer and 1" tweeter
  • Single two-way active studio monitor
  • Linear Spatial Reference design for great clarity at the mix position, great for creating stereo or multi-channel mixes
  • The Linear Dynamics Aperture port design minimizes port turbulence and reduces power compression
  • Six DIP switches on the input panel give you the ability to precisely control the gain and response of the system

JBL LSR6328P/5.1 Specifications

Subwoofer: Connectors
Neutrik Combi XLR 1/4"
Subwoofer: Input Impedance
2 ohm
Subwoofer: SPL
(Maximum Sound Pressure Level) 112dB
Subwoofer: Frequency Range
28 - 80Hz
Subwoofer: Crossover
80Hz
Subwoofer: Amplifier
260W
Subwoofer: Driver
Active
Studio Monitor: Shielded
Yes
Studio Monitor: Connectors
1 x Power Input
1 x XLR/TRS Combo Input
1 x 1/4" RMC Bypass
Studio Monitor: Controls and Indicators
1 x Power Switch
1 x RMC Enable Switch
1 x RMC Depth Control
1 x RMC Frequency Control
1 x RMC Width Control
8 x DIP-Switches for Input Trim Active, Input Sensitivity, VLF Protection, HF Level and LF Boundary
1 x Input Trim Control
Studio Monitor: Maximum SPL
>108dB (Sound Pressure Level)
Studio Monitor: Frequency Range
50Hz - 20kHz (+1, -1.5dB)
Studio Monitor: Crossover
1.7kHz 6th-Order Acoustic Linkwitz-Riley
Studio Monitor: HF Amplifier
120W, Class A-B Monolithic
Studio Monitor: LF Amplifier
250W, Class A-B All-Discrete
Studio Monitor: High Frequency Driver
1" (25mm) Damped Titanium Composite Tweeter
Studio Monitor: Low Frequency Driver
8" (203mm) Carbon Fiber Composite Woofer with 1.5" Voice Coil
Subwoofer: Controls and Indicators
Direct Input LFE, RMC Adjust, Remote Bypass Connector
Dimensions (H x W x D)
Subwoofer: 15.5 x 25 x 11.5" (39.4 x 63.5 x 29.2cm)
Studio Monitor: 16 x 13 x 12.8" (406 x 330 x 325mm)
Weight
Subwoofer: 50 lbs (22.7 kg)
Studio Monitor: 39 lbs (17.7kg)
