JuicedLink

JuicedLink Rectangular Accessory Bracket

SKU: JDDIY101B MFR: DIY101B
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

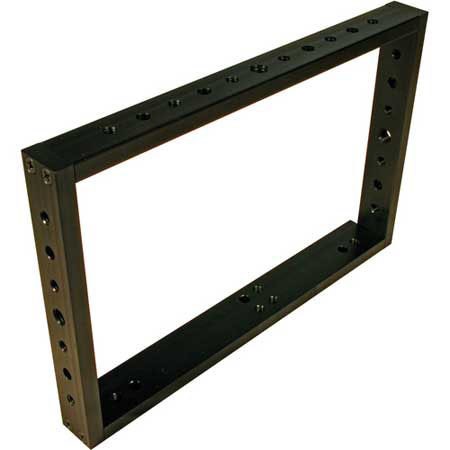

The JuicedLink DIY101B Accessory Bracket - Rectangular is a mounting bracket that hosts a DSLR or other small video camera and several accessories such as monitors, batteries, wireless audio receivers, etc. Composed of CNC-milled aluminum with a black anodized finish, the Accessory Bracket has the form of a 10.5 x 6.75" rectangle and features a vast number of mounting points.

These mounting points include three 3/8"-16 threaded holes, fourteen 1/4"-20 threaded holes and ten unthreaded holes that fit 1/4"-20 screws. One of the bracket's 1/4"-20 threaded holes is positioned to accept the bolt from a tripod. The frame includes a 1/4"-20 socket cap screw with a rubber pad for attaching a camera or a camera quick-release head, as well as several other 1/4"-20 socket cap screws with rubber pads for mounting accessories to the DIY101 frame.

For handheld camera operation, you can grip the sides of the frame. The hand separation required by the shape of the frame engenders stable shooting.

What's Included With This Item

  • JuicedLink Rectangular Accessory Bracket
  • 1/4"-20 Socket Cap Screw with Rubber Pad for Camera
  • 6 x 1/4"-20 Socket Cap Screws with Rubber Pads
  • JuicedLink Warranty

Key Features

  • The separation of the vertical frame bars engenders stable handheld operation

Technical Specs

Compatibility DSLR or Other Small Video cameras
Dimensions (H x W) 6.75 x 10.5" (17.1 x 26.7 cm)
Weight (Approx.) 1.25 lb (0.6 kg)
