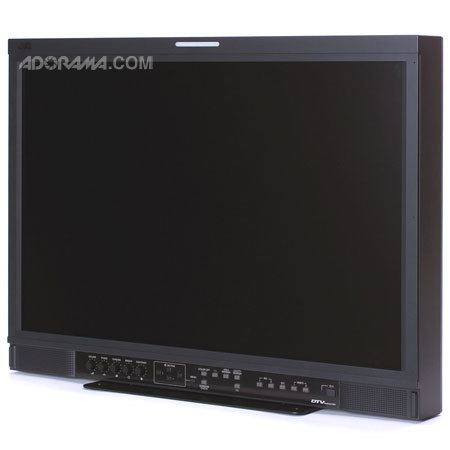

JVC DT-R24L4DU 24-inch HDTV/SDTV Studio LCD Monitor
JVC

JVC DT-R24L4DU 24" HDTV/SDTV Studio LCD Monitor, 1000:1 Contrast Ratio, 1920x1200 (W-UXGA) Resolution

SKU: JVDTR24L4DU MFR: DT-R24L4DU
What's Included
What's Included With This Item:
  • JVC DT-R24L4DU 17-inch HDTV/SDTV Studio LCD Monitor
  • Adjustable Support Stand
  • AC Power Cord w/Holder
  • 2 x Screw
  • Ferrite Core
  • JVC Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$2,895.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The JVC DT-R24L4DU 24" Studio Monitor w/HD-SDI is a 4th generation "R-Series" monitor that shares the same chassis, quality and most of the same features of its Verite counterpart, the DT-V24G1Z. Priced for affordability, this 24" monitor combines an impressive set of professional features with its 1920 x 1200 display, including dual-link HD/SD-SDI inputs that allow use of the full 4:4:4 color space while monitoring 1080/60p video.

Meanwhile, the 10-bit processing and non-glossy LCD panel combine to provide highly accurate color reproduction. This is key when grading or matching footage in critical monitoring applications such as broadcast, studio, mobile and location work. Other professional touches are the inclusion of time code support, tally lamps, safety markers and advanced audio level metering.

What's Included With This Item

  • JVC DT-R24L4DU 17-inch HDTV/SDTV Studio LCD Monitor
  • Adjustable Support Stand
  • AC Power Cord w/Holder
  • 2 x Screw
  • Ferrite Core
  • JVC Warranty

Key Features

  • Native 1920 x 1200 IPS (In-plane Panel Switching) LCD Panel offers wide viewing angle of 178 Deg./178 Deg. with minimal color change from different viewing angles. Panel provides 1:1 monitoring of 1920 x 1080 signals while providing metering and status above or below the active picture area
  • 10-Bit 4:4:4 Video Processing for superior image gradation, advanced directional interpolation in eliminating edge artifacts, and pixel-based motion adaptive de-interlacing
  • Highly accurate reproduction in conformity with ITU standards. A chromatic range equivalent to EBU 100%, ensures color reproduction that is virtually identical to the original
  • Ultra-Low Latency Circuitry (< 1 frame) for lip-sync accuracy
  • Twelve Channel Embedded Audio Metering Display with Peak Hold viewable above or below active picture area
  • HD/SD SDI Embedded Time Code On-Screen Display
  • Ergonomic Front-Panel Precision Rotary Controls
  • Safe area markers compatible with different aspect ratios
  • 16:9 / 4:3 aspect ratio switching, auto aspect selection
  • Two-color tally lamps
  • 1080/24psf Signal Capability
  • Full Screen Mode for SD 4:3 signals
  • HD/SD SDI (x2 In, x1 Switched Out), Composite Video Input and Output
  • DVI-D (HDCP Video and PC) Input
  • Audio inputs with built-in speakers
  • ASCII Code Input for Source ID
  • RS-232C, RS-485 (RJ-45 In and Out) and Make/Trigger (RJ-45 In) External Control Connections
  • Versatile 3-way stand included (Table top, Flush or Wall mount)
  • VESA-compliant design
  • Computer Automated Calibration Capability of Black Level, White Level, Color Temperature and Gamma for mission-critical monitor matching

Technical Specs

Aspect Ratio 16:10
LCD Panel 24" wide format, active matrix TFT
Effective Screen Size 518.4 x 324 mm (20-1/2" x 12-7/8")
Pixels 1920x1200 (W-UXGA)
Display Colors 16.77million
Viewing Angle Horizontal:178 Deg., Vertical: 178 Deg.
Brightness 400cd
Contrast Ratio 1000:1
Applicable Standard HD SDI: BTA S-004B, SMPTE292M
SD SDI: ITU-R BT.656: 525/625, SMPTE259M: 525
EMBEDDED AUDIO: SMPTE299M, SMPTE272M
Audio Output Internal: 1.0 W + 1.0 W (L/R)
Video HD/SDI (IN1): BNC x 1
HD/SDI (IN2): BNC x 1
HD/SDI SDI (OUT): BNC x 1
Video1: BNC x 2 (IN/OUT)
DVI-D(HDCP): DVI-D connector x 1
Audio Audio IN1: RCA x 2 (audio assign)
Audio IN2: RCA x 2 (audio assign
Audio Monitor Out:: RCA x 2 (audio assign)
External Control Make Trigger: RJ-45 x 1 (8-pin)
RS-485: RJ-45 x 2 (IN/OUT) (8-pin)
RS-232C: D-sub (9-pin) x 1
Signal System NTSC/PAL
Power Requirements AC 120/220-240 V, 50/60 Hz
Dimensions (WxHxD) 564 x 408 x 99 mm (22-1/4" x 16-1/8" x 4") Without desktop stand (excluding protrusions)
Weight Without Stand: 19.1 lbs (8.7kg)
