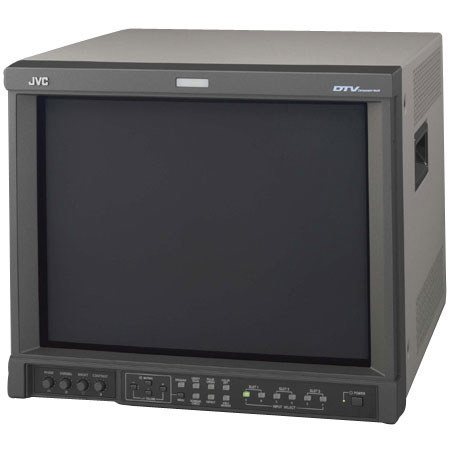

JVC 17" Multi-Format CRT Color HDTV / SDTV Video Editing Monitor, with Wide Range of User-Selectable Input Cards.
Mfr. Part: DTV1710CGU SKU: JVDTV1710CGU
enlarge image
|
|
 |
|
|
|
Description
HDTV/SDTV Format Compatibility:
· The DT-V1710CGU is compatible with all major DTV formats (480i, 576i, 480p, 576p, 1080i, & 720p), & also accepts signals in 1080/24psF cinema mode, making it ideal for TV producers, broadcasters, & video pro's processing movie stock captured at 24 frames p.s. Offering support of 720/50p & 576/50p, it can be readily integrated into PAL based environments.
Big-Screen Display in Rugged, Compact Cabinet:
· The DT-V1710CGU is housed in a tough metal cabinet. It offers a 16:9 aspect 17" display while maintaining the same dimensions as a conventional 15" monitor.
High-Voltage Separation Circuit:
· To achieve professional-level image stability on screen, the monitor employs a high-voltage/deflection separation circuit.
White Balance Stability:
· The natural flat-screen CRT employs an IK feedback system which provides exceptional color stability over a very long period of time
Front Panel Controls featuring Advanced Ergonomics:
· The front panel controls are ergonomically designed & rotate smoothly. They allow fast & simple adjustment of key image parameters such as Brightness, Phase, Chroma & Contrast.
Extended Multi-Standard Compatibility with Optional Input Cards (Plug & Play):
· Besides the signals of all major digital formats, these monitors will automatically detect & accept an incoming NTSC/PAL signal. Users can customize the monitor by inserting optional input cards into the 3 input slots provided. There are 9 input cards available which cover virtually every possible input combination including HD-SDI, SDI, Component/RGB & Video. Each card is automatically recognized when inserted into an input slot
Wide Selection of Control Functions:
· Underscan, Aspect Ratio, Color Off, Switchable Area Marker are just some of the control functions which lend this DTV monitor for use in pro TV production
UL/CE Regulatory Approval:
· Approved under UL/CE regulatory standards
Rush-Current Delay:
· Once activated, JVC's special Rush-Current Delay function reduces the load on the studio mains power supply when a number of units are powered up simultaneously. The operator can set delay times for individual monitors in a range from 0 to 3 sec.
Variable Aspect Ratio and Area & Safety Markings:
· In addition to offering 16:9 & 4:3 image display selectability, there is also a choice of Area Markings when in 16:9 mode, selectable between 14:9, 13:9, 4:3 or none, with switchable line/black/mat (1/2) modes for each. The Safety Marker function displays 80%, 88% or 90% of the area (in 16:9 or 4:3)
Remote Control Capabilities:
· Remote control is possible via RS-485 (9-pin D-sub), MAKE (contact closure) or TRIGGER (15-pin D-sub). With the RS-485 interface, cascaded connection (0-99) & daisy chain connection are possible
Plus:
Selectable (Gr/Rd) Color of Tally Lamp, HD/SD Compatible Interface, AES/EBU Digital Audio Output, Audio Level Indication on Screen |
Features
 |
17" High-Definition DTV Monitor |
|
Multi-format capability HDTV/SDTV |
|
Big-screen design in compact package |
|
EIA rack mountable: (8U) |
|
Natural Flat CRT |
|
Over 800 lines of resolution |
|
Supports 1080/24psF cinema format |
|
Selectable aspect ratio 16:9/4:3 |
|
Wide selection of input cards to occupy the 3 blank connection slots |
|
HV separation & IK feedback for picture stability |
|
Area and Safety Marker settings |
|
Audio Level Indication on Screen (option) |
|
Equipped with 2-color Tally Lamp |
|
Rotation function |
|
Remote control via Contact closure, Trigger or RS-485 |
|
Rush-current Delay function |
|
Multi-voltage 120/220/230 V |
Specifications
| Type | Multi-Format Color HDTV/SDTV Video Monitor |
| Scanning Frequency | (H) 15.625/15.734/28.125/31.5/33.75/45kHz
(V) 48 (24psF)/50/59.94/60Hz |
| Power Consumption | 120V AC, 1.56A (MAX. 1.85A) when input card is inserted.
220V/230V AC, 0.9A (MAX. 1.0A) when input card is inserted. |
| Power Supply | 120V/220V/230V AC, 50Hz/60Hz |
| Color System | NTSC, PAL, 480i, 576i, 480p, 576p, 1080i, 1080/24psF, 720/60p, 720/50p |
| CRT | 16"V (17") in-line gun, AG pitch 0.25 mm, Natural Flat CRT |
| Horizontal resolution | More than 800 TV lines |
| Color temperature | 6,500°K/9,300°K selectable |
| Input | Video Input: 3 slots for optional input cards
Remote Terminals: RS-485: 9-pin, D-sub x 2. Contact Closure & Trigger: 15-pin, D-sub |
| Audio connectors | Audio Input: Video input card incorporates audio inputs |
| Audio speaker | 3-3/16" (8 cm) round |
| Weight | 52.2 lbs. (23.7 kg) |
| DIMENSIONS: Physical (WxHxD) | 15-5/8" x 13-1/4" x 18-3/8" (395 x 334 x 466.5 mm) |
| | |
|
|
|
|
|
|
|
|
|
