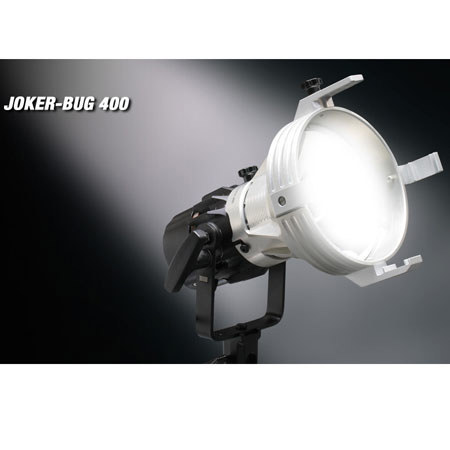

K 5600 Joker-Bug 400 Complete HMI System, with Head, Power Supply, Lamp & Extension Cable, AC Only


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: In Stock Online In Stock Online - Usually ships within 1-2 Days

Free Shipping

See all shipping options

Product Highlights

  • Aluminum casting
  • Solid one piece machined aluminum beamer housing
  • 400 Watt MSR/SE lamp
  • 400Watts
  • HMI Kit
K 5600 : Picture 1 regular $4,690.00

About K 5600

The Joker-Bug 400 combines the characteristics of the BUG-LITE 400, a 400 Watt daylight HMI system without optic with those of the Joker 400, a PAR 46 fixture using a specular parabolic reflector and a set of 4 lenses. The Joker-Bug 400 is comparable to a 1500/2000W quartz fixture but with a power draw of only 5.5 Amps.

In the Bug-Lite mode (no optics) the main application is in traditional Lightbanks as well as Lanterns where it uses the sides as a large reflector, collecting the maximum output of the lamp and filling the front screen very evenly. It is very powerful in daylight interiors and can operate in any position including pointing straight down. The BEAMER optical accessory turns the BUG-LITE into a Joker-Bug, a directional PAR unit offering various beam patterns through quick lens changes.

The Joker-Bug 400 offers the most flexible optical configuration for location lighting by achieving Spot to Flood ratios of 80 to 1 with beam angles ranging from 5 degrees to 55 degrees. The Joker-Bug 400 is delivered with a Clear Glass Beaker when reaching for full intensity is important and a Frosted Glass Beaker when light quality is the prime concern.

The 400W MSR lamp was selected for its size/weight and the sizes/weights of the components needed to operate it. The MSR lamp with its GZZ 9.5 base is considerably smaller than the next traditional Wattage, the 575 (G22 base). The shorter arc gap of the 400 makes up for the difference of output between 400 and 575 and the lower Wattage does not require forced air cooling of the power supply.

The small, quiet ballast can be hidden anywhere and plugs in any circuit without risk of overloading. With the Slimverter 400 and two 30 volt batteries, the Joker-Bug 400 is the largest 30 volt battery powered HMI. Motion Picture Gaffers and Freelance Cameramen have adopted the Joker-Bug 400 for fine daylight interiors, car shots, two camera interviews, TV magazines, documentaries and industrials.

K 5600 Features

  • Aluminum casting, high temperature black. Striker compartment is made of aluminum in light gray finish
  • Solid one piece machined aluminum beamer housing
  • 400 Watt MSR/SE lamp

K 5600 Specifications

Lamp Housing
Aluminum casting, high temperature black. Striker compartment is made of aluminum in light gray finish
Lamp Socket
GZZ 9.5 highly insulated for hot retsrike
Safety Glass Beaker
Borosilicate UV filter tempered
Aluminum casting black high temperature finish. Large T-handle and large brake area for use with Light banks, SpeedRings, Louvers and Lanterns
BEAMER housing
Solid one piece machined aluminum with replaceable ears. Black anodized. BEAMER reflector electrolytically coated 5"diameter specular parabolic, aluminum 90% reflectance
Accessory Size
6 5/8"
Mounting/Grip Equipment
All standard 5/8" baby hardware
400 Watt MSR/SE daylight single ended discharge, 5600 Kelvin, 700 hours maximum life
Veam quarter-turn quick locking
Extension Cable
25 foot shielded. Common to 200/400 and 800 (nine feet attached to the head)
Power Supply
Electronic, square wave flicker free
ON/OFF push button switch
4.5 lbs
