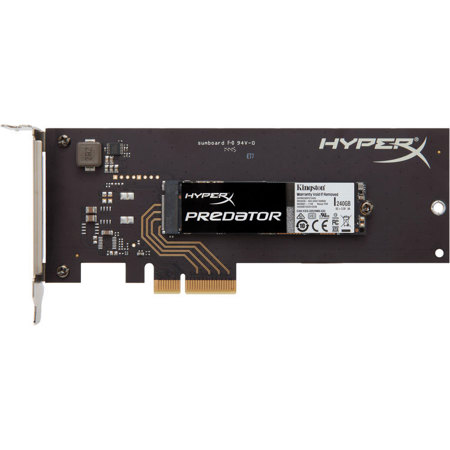

Kingston Technology 480GB HyperX Predator PCIe Gen2 x4 with HHHL Adapter

SKU: KGSH28P2H48G

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-02-28T10:19:31

Rated 5 out of 5

Do yourself a favor and get one

Kingston predator 480gb PCIe breathes fire into the machine Excellent performance in Mac Pro 2010 read and write performance 1000mbs rocks machine boots 13 seconds Mac OS Sierra wow legion used to have 2min load times on zones now it's like 5 sec. holding for the next macpro!

James G.

Kingston Technology 480GB HyperX Predator PCIe Gen2 x4 with HHHL Adapter Specifications

Baseline Performance

Baseline Performance

Jump to...

  • Compressible Data Transfer (ATTO)

    240GB: 1400MB/s Read and 600MB/s Write
    480GB: 1400MB/s Read and 1000MB/s Write

Other

Jump to...

  • Form factor

    M.2 2280

  • Interface

    PCIe Gen 2.0 x4

  • Capacities

    240GB, 480GB

  • Controller

    Marvell 88SS9293

  • Incompressible Data Transfer

    (AS-SSD and CrystalDiskMark)
    240GB 1290MB/s Read and 600MB/s Write
    480GB 1100MB/s Read and 910MB/s Write

  • IOMETER Maximum Random 4k Read/Write

    240GB: up to 160,000/ up to 119,000 IOPS
    480GB: up to 130,000/ up to 118,000 IOPS

  • Random 4k Read/Write

    240GB: up to 120,000/ up to 78,000 IOPS
    480GB: up to 117,000/ up to 70,000 IOPS

  • PCMARK® Vantage HDD Suite Score

    240GB: 138,000
    480GB: 139,000

  • PCMARK® 8 Storage Bandwidth

    240GB: 331MB/s
    480GB: 336MB/s

  • PCMARK® 8 Storage Score

    240GB: 5,015
    480GB: 5,017

  • Anvil Total Score

    (Incompressible Workload) 240GB: 6,500
    480GB: 6,700

  • Power Consumption

    1.38W Idle / 1.4W Avg / 1.99W (MAX) Read / 8.25W (MAX) Write

  • Storage temperatures

    -40°C~85°C

  • Operating temperatures

    0°C~70°C

  • Dimensions

    80mm x 22mm x 3.5mm (M.2)
    180.98mm x 120.96mm x 21.59mm (with HHHL adapter - standard bracket)
    181.29mm x 80.14mm x 23.40mm (with HHHL adapter - low-profile bracket)

  • Weight

    10g (M.2)

    73g (with HHHL adapter - standard bracket)
    68g (with HHHL adapter - low-profile bracket)

  • Vibration operating

    2.17G Peak (7 800Hz)

  • Vibration non-operating

    20G Peak (10 2000Hz)

  • Life expectancy

    1 million hours MTBF

  • Warranty/support

    3-year warranty with free technical support

  • Total Bytes Written (TBW)

    240GB: 415TB 1.6 DWPD
    480GB: 882TB 1.7 DWPD

  • UPC Code

    740617237481

About Kingston Technology 480GB HyperX Predator PCIe Gen2 x4 with HHHL Adapter

FEATURED REVIEWS

Do yourself a favor and get one

By James G.

Kingston predator 480gb PCIe breathes fire into the machine Excellent performance in Mac Pro 2010 read and write performance 1000mbs rocks machine boots 13 seconds Mac OS Sierra wow legion used to have 2min load times on zones now it's like 5 sec. holding for the next macpro!

Hyperx Predator SSD offers large capacities and incredible speeds with both compressible and incompressible data to take your system to the edge. Faster than SATA-based SSDs, it delivers speeds up to 1400MB/s read and 1000MB/s write for ultra-responsive multitasking and an overall faster system.

It features a PCIe Gen 2.0 x4 interface for high performance and an M.2 form factor to fit thenext generation of desktops with an M.2 PCIe slot. Hyperx Predator SSD comes with a three-year warranty and free technical support to keep you winning.

Kingston Technology 480GB HyperX Predator PCIe Gen2 x4 with HHHL Adapter Features

  • Powered by Marvell controller
  • PCIe Gen 2.0 x4 interface in M.2 form factor
  • Optional Half-Height, Half-Length adapter
  • Speeds up to 1400MB/s read and 1000MB/s write
  • Guaranteed Kingston 3 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Powered by Marvell controller
  • PCIe Gen 2.0 x4 interface in M.2 form factor
  • Optional Half-Height, Half-Length adapter
  • Speeds up to 1400MB/s read and 1000MB/s write
  • Guaranteed Kingston 3 year warranty

What's in the box:

  • M.2 with HHHL Adapter
  • Standard & low-profile brackets
  • Hard drive cloning software
  • download coupon
  • Kingston 3 year warranty
