Kramer Electronics 1 BNC (M) to 1 BNC (M) RG-6 Video Cable, 10'

Kramer Electronics
SKU: KRMBMBM10 MFR: C-BM/BM-10

List Price: $9.00

See all shipping options

In Stock & Ready to Ship

20% Off

Our Price

$7.20
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Kramer Electronics : Picture 1 regular $7.20

About Kramer Electronics

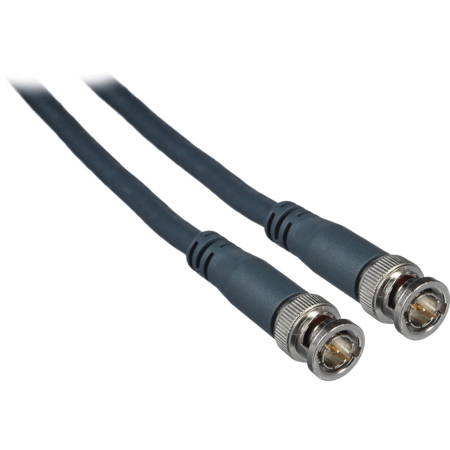

The Kramer Electronics 1 BNC (M) to 1 BNC (M) RG-6 Video Cable (10') is constructed of high performance RG-6 cable with 75 Ohms BNC connectors at each end. It offers outstanding quality, durability and high performance for any video signal application.

Kramer Electronics Features

  • Quality Construction - RG-6 cable for the highest resolution signals
  • High-Quality Connectors - True 75Ohm BNC connectors maintain correct impedance end-to-end
  • Tested to 3G

Kramer Electronics Specifications

Cable Length
10' / 3m
Conductor
18 AWG solid bare copper
Dielectric
Skin foam
Shield
(A) 61% braid 34 AWG aluminum wire
(B) Dual foil/Mylar 25% overlap rate
Construction
Outside Jacket: PVC
Diameters
Center Conductor: 1.02mm (0.0403")
Dielectric: 4.57mm (0.179")
Outside Diameter: 6.95mm (0.27")
Impedance
75 Ohms
DC Resistance
21.8Ohm/km (6.6Ohm/1000ft)
Capacitance
53.1pF/m (16.1pF/ft)
Velocity of Propagation
82%
Attenuation (dB/100 ft.)
0.3dB at 1MHz
0.6dB at 5MHz
0.8dB at 10MHz
1.6dB at 50MHz
2.0dB at 100MHz
2.8dB at 180MHz
4.4dB at 400MHz
5.7dB at 750MHz
6.7dB at 1000MHz
Regulatory
UL: CL2
CSA: C(UL) CL2
Mfr #
C-BM/BM-10
SKU
KRMBMBM10
