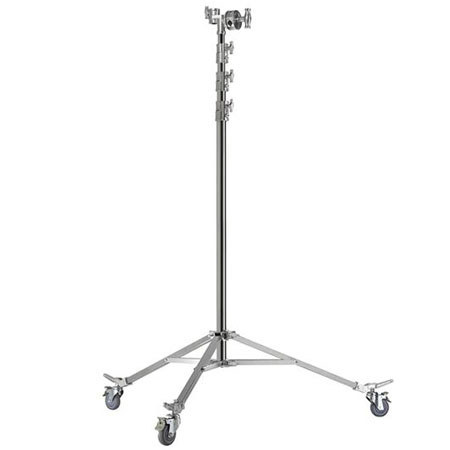

Kupo S600112 High Overhead Roller Stand
Your card will only be charged once item ships.
Ways to Save
The Kupo S600112 High Overhead Stand takes you to altitudes just shy of 20'! Designed primarily to support overhead frames, also known as "butterfly frames", this giant is ready to meet your support needs skyward. Each riser is spring cushioned as a safety feature to protect lighting fixtures from a sudden drop if the locking collar becomes loose. The solid steel construction has a maximum load capacity of 88.2 lbs (40 Kg) and is equipped with braked casters to easily reposition heavy loads.
Each caster is equipped with a peg that extends past the wheel allowing it to stand upright when collapsed. The High Overhead Stand also features a "true combination" head with a 4 1/2" grip head, also known as a "lollipop" and a junior 1-1/8" (28mm) receiver to accept any kind of mounting challenge.
|1st Riser Diameter||1.97 inches / 50 mm|
|2nd Riser Diameter||1.77 inches / 45 mm|
|3rd Riser Diameter||1.58 inches / 40 mm|
|4th Riser Diameter||1.38 inches / 35 mm|
|Leg Diameter||1.19 x 1.19 inches / 30 x 30 mm|
|Primary Material||Chrome Plated Steel|
|Secondary Material||Aluminum Locking Collars|
|Tertiary Material||Stainless Steel Bolts|
|Fixed Stand Adapter||Fixed 4-1/2" Grip Head with 1-1/8" (28mm) receiver|
|Stand Adapter Type||Welded|
|Closed Length||73.23 inches / 186 cm|
|Maximum Extension||Height: 233.86 inches / 594 cm|
|Maximum Load||88.18 lbs / 40 kg|
|Footprint Diameter||61.42 inches / 156 cm|
|Minimum Jaw Diameter||0.38 inches / 9.65 mm|
|Maximum Jaw Diameter||0.63 inches / 16 mm|
|Weight||47.18 lbs / 21.4 kg|
