Libec RH35R Specifications

  • Load Capacity

    20 lbs (9 kg)

  • Diameter/Thread

    1/4"

  • Counter Balance System

    Fully adjustable continuous counterbalance system
    When the innerspring is set to maximum strength, the tilt angle is limited to +/-40deg.

  • Counter Balance Range

    6.5 to 16.5 lbs (3 to 7.5 kg)

  • Quick Release/Wedge Plate

    Sliding plate with +/- 1.6" (40 mm) range
    Plate attachment: 1/4" screw with video pin

  • Tilt Drag

    Yes, free plus 3-step

  • Tilt Range

    +90deg. to -70deg.

  • Tilt Lock

    Yes

  • Spring Loaded Counter Bal

    Yes

  • Pan Range

    360deg.

  • Pan Lock

    Yes

  • Leveling Bubble/Illuminated

    Yes, illuminated

  • Temperature Range

    -40deg.F to +140deg.F (-40deg.C to + 60deg.C)

  • Weight

    5.9 lbs (2.7 kg)

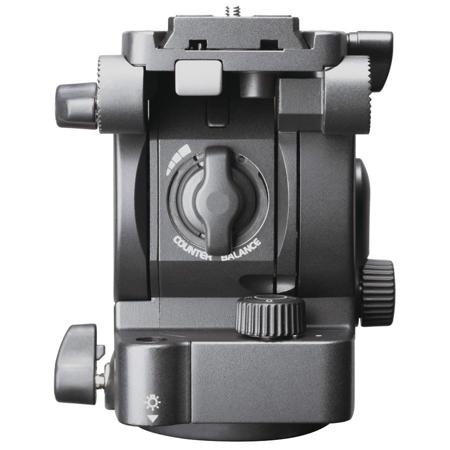

About Libec RH35R

The Libec RH35R Pan and Tilt Fluid Head is an advanced fluid head with upgraded functions. The variable counterbalance system, for instance, allows the RH35R to accommodate handheld video cameras that are combined with DSLR accessories such as matte boxes, audio and lighting equipment.

It also provides ideal counterbalance, a superb drag system that reduces wobbling when panning and backlash at the end of panning and extreme low-temperature characteristics down to -40deg.F. It can handle a payload of up to 20 lbs (9 kg), with a counterbalance range of 6.5 to 16.5 lbs (3 to 7.5 kg). An extendable panhandle with rubber grips is included for precise camera movements. In addition, it's equipped with an LED bubble level for easy level adjustments in the dark. The RH35R weighs just 5.9 lbs (2.7 kg).

Libec RH35R Features

  • Continuous counterbalance system allows you to stop the camera precisely at any tilt angle
  • A new drag system produces a significant reduction in wobbling in the image with panning at the start of shooting and a significant reduction in the backlash at the end of panning
  • This head can be operated in temperatures as low as -40deg.F (-40deg.C), with ordinary torque performance even in frigid conditions
  • New tripod design eliminates wobbling in the image cause by the tripod twisting
  • Extendable pan handle with a rubber grip
  • Illuminated LED bubble level
  • Sliding camera plate

Key Features

  • Extendable pan handle with a rubber grip
  • Illuminated LED bubble level
  • Sliding camera plate

What's in the box:

  • Libec RH35R Pan and Tilt Fluid Head
  • Pan Handle
  • 1/4" and 3/8" Screws
  • Libec 3 Year Warranty
