Leica

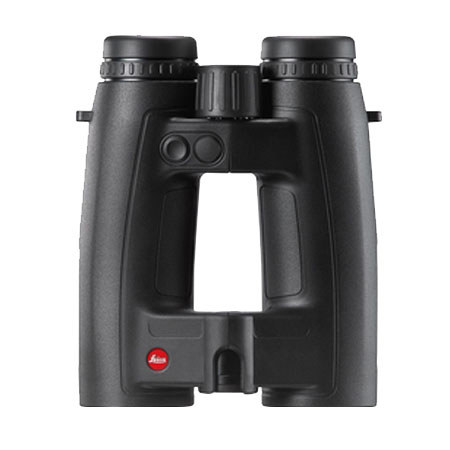

Leica 10x42 Geovid HD-B Rangefinder Water Proof Porro Prism Binocular with User Ballistic Interface, with 6.5 Degree Angle of View

SKU: LC1042HUBI MFR: 40049
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$2,999.00
Free Shipping
Qty:
Add to Wishlist In Stock

About the Leica 10x42 Porro Prism

The Leica 10x42 Geovid HD-B Rangefinder Binocular contains image quality of a fully multicoated optical path with the functionality of a 2000-yard laser rangefinder and integrated ballistics computer. Using an array of built-in sensors, this electro-optic measures the ambient atmospheric conditions as well as the shooter's angle relative to the target. By compiling data from the laser rangefinder and environmental sensors, the ballistics computer will calculate several values that can help improve shot placement.

Leica's Advanced Ballistic Compensation (ABC) technology combines temperature and air pressure readings with rangefinder data, zeroing distance and user-defined ballistics curve to calculate ballistic compensation values. To maximize the accuracy of compensation values, the Geovid HD-B allows the shooter to input their rifle's zero distance and select a ballistics curve corresponding to the chambered round. The HD-B is pre-loaded with 12 ABC ballistics curves for various calibers and weights and alternative ballistics curves can be stored and uploaded using the included micros card. An in-view LED display allows the observer to view the calculated ABC values without taking their eyes off the visual scene.

Like other Geovid series binoculars, the HD-B model has a nitrogen-filled fogproof housing as well as fully multicoated fluoride glass lenses that transmit luminous and color faithful images. Leica's phase-corrected Perger Porro prism design merges the benefits of roof and Porro designs, delivering a streamlined form factor without sacrificing depth of field or color fidelity. Exposed lens surfaces are finished with Leica's proprietary High Durable (HDC) and AquaDura lens coatings, which repel moisture and prevent dirt from adhering to the glass. These features add up to a multi-purpose handheld optic that is built for unforgiving weather conditions and low light performance.

In addition to the broad functionality and premium image quality, the Geovid HD-B includes a range of features that provide ergonomic handling and user-friendly interaction. The dual-bridge configuration and rear-located center focus wheel balance the housing and even help to stabilize this binocular in the observer's hands. This optic is also equipped with a long 20mm eye relief and click-stop eyecups that twist up to create a comfortable viewing distance for almost any observer. The auto-adjusting display brightness, two-button rangefinder operation and included micros memory card make the Geovid HD-B a fully-loaded rangefinder for targets up to 2000 yards away.

Leica 10x42 Porro Prism Includes

  • Leica 10x42 Geovid HD-B Rangefinder Binocular
  • micros Memory Card
  • Cordura Case
  • Neoprene Carrying Strap
  • Objective Cap Set
  • Eyepiece Cap Set
  • CR2 Battery
  • Leica Warranty

Leica 10x42 Porro Prism Features

  • Equivalent Horizontal Range mode calculates horizontal distance to target
  • Point of Aim mode displays the holdover compensation in centimeters
  • Impact Point Correction mode calculates elevation adjustment in MOA / MRAD clicks
  • Inclinometer measures the shooter's angle of inclination relative to the target
  • Barometer and thermometer measure ambient atmospheric conditions
  • Zeroing distance is programmable in 100 yd / m increments
  • 12 pre-loaded ballistics curves corresponding to load caliber, type, weight
  • Alternative ballistics curves can be stored and uploaded using the microSD card
  • ABC values are derived from the set zeroing distance and ballistics curve, atmospheric readings, target's angle of inclination and measured distance
  • Twist-up rubber eyecups with five detented positions
  • Four-digit LED overlay with auto-brightness adjustment
  • Center focus wheel with non-slip gripping ridges

Leica 10x42 Porro Prism Specifications

Prism Type Porro
Magnification 10.0x
Objective Lens Diameter 42mm
Angle of View 6.5deg. (actual)
Field-of-View 374' at 1000 yd / 124.17 m at 1000 m
Minimum Focus Distance 16.5' / 5.03 m
Exit Pupil Diameter 4.2mm
Eye Relief 20mm
Interpupillary Adjustment 56 - 74 mm / 2.20 - 2.91"
Dioptric Correction ̱4
Focus Type Center
Dimensions 6.85x4.92x2.76" (17.40x12.50x7.00cm)
Weight 33.33oz (945g)
