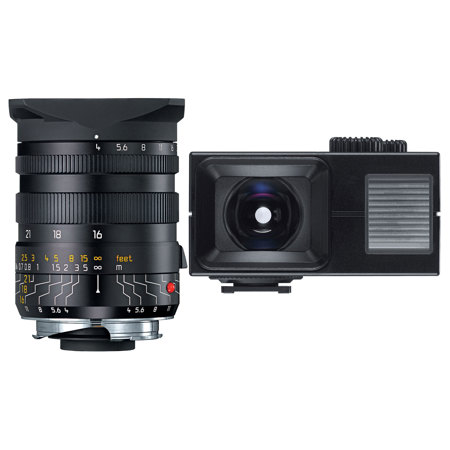

Leica 16-18-21mm f/4.0 Tri Elmar-M Aspherical Super Wide Angle Manual Focus Lens for M System, with Universal Wide Angle Viewfinder M, Black, U.S.A
Mfr. Part: 11642 SKU: LC1618214MFU
|
|
 |
This item is currently back ordered from the Mfr. We have no estimated time of arrival for this item
Please note: You can order this now and have us ship it as soon as it arrives.
We will not charge your card for any backordered items, until it is ready to actually ship. |
|
|
Item Includes
Screw-on type Lens Hood - Universal Wide Angle Viewfinder M
|
Description
With its impressive angle of view of 107°, this new TRI-ELMAR conquers 16 mm super wide-angle photography in perfect Leica M style. Due to the minimal distortion and barely perceptible field curvature, it can be recommended for highly demanding architecture photography even at the 16 mm setting.
Used on thedigital M8, it produces the image effect of a 21 - 28 mm lens, still enabling extreme wide-angle views. The ultra compact shape is achieved by two aspherical elements.
A new design of the interior focusing significantly enhances the quality in the close-focus range through an adaption of the floating element principle. Brilliant field depth can therefore be used from a distance of 0.33m for hyperfocal photography. Save money by buying the lens in a set together with the Universal Wide-angle Viewfinder M. (included in this version)
The LEICA UNIVERSAL WIDE-ANGLE VIEWFINDER M enables precise cropping of the subject with the LEICA TRI-ELMAR-M f/4/16-18-21 mm ASPH. on the LEICA M7 and MP as well as the digital LEICA M8. For the LEICA M8, the focal length extension factor of 1.33x has to be considered, so in this case the bright-line frames for21, 24 or 28 mm are set on the LEICA UNIVERSAL WIDE-ANGLE VIEWFINDER M. A parallax compensation dial enables adjustment of the frame to the focusing distance in five steps.
Thanks to one aspherical lens element and one with achromatic correction, the LEICA UNIVERSAL WIDE-ANGLE VIEWFINDER M is insensitive to stray light and features high resolution and exceptional brilliance. An illuminated spirit level helps to keep the camera horizontal even in unfavorable light conditions. The eyepiece has a screw mount for optionally available diopter correction lenses.
|
Specifications
| Angle of view diag/horiz/vert |
| for 35 mm (24 x 36 mm): |
at 16 mm: 107°, 97°, 74°
at 18 mm: 100°, 90°, 67°
at 21 mm: 92°, 81°, 60° |
| for digital (18 x 27 mm): |
at 16 mm: 90°, 80°, 59°
at 18 mm: 84°, 74°, 53°
at 21 mm: 75°, 65°, 46°,
corresponds approx. to a focal length of 21/24/28 mm with 35 mm-format |
| Optical design | Number of elements / groups: 10 / 7 |
| Distance setting |
| Focusing range: | 0.5 m to Infinity, range from 0.5 to 0.7 m separated by index |
| Scales: | Combined meter/feet graduation with uniform grey figures below 0.7 m |
| Smallest object field: for 35mm |
at 16 mm: 915 x 1373 mm, approx. 1:38
at 18 mm: 833 x 1250 mm, approx. 1:35
at 21 mm: 725 x 1087 mm, approx. 1:30 |
| Smallest object field: for digital: |
at 16 mm: 688 x 1032 mm, approx. 1:38
at 18 mm: 626 x 939 mm, approx. 1:35
at 21 mm: 545 x 817 mm, approx. 1:30 |
| Highest reproduction ratio: at 0,7 m |
at 16 mm: 1:38
at 18 mm: 1:35
at 21 mm: 1:30 |
| Aperture |
| Setting / Function: | Preset, with click-stops, half values available |
| Lowest value: | 22 |
| Bayonet | Leica M quick-change bayonet with 6 bit lens identification bar code for digitalM models |
| Filter (type) | Male thread, non-rotating and with stop for filter holder or lens hood |
| Lens hood |
screw-on type lens hood (included in delivery), filter holder for E67 size filters optionally available |
| Dimensions |
Length: approx. 62/72 mm (with/without lens hood)
Largest diameter: approx. 54 mm (53 x 58 mm with lens hood) |
| Weight | approx. 11.8 oz / 335 g |
| | |
|
|
|
|
|
|
|
|
|
|
