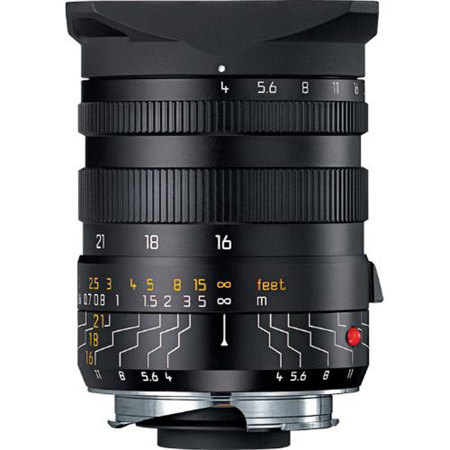

Leica 16-18-21mm f/4.0 Tri Elmar-M Aspherical, Manual Focus (6-Bit Coded) Lens for M System, Black, U.S.A Warranty


Regular Price: $5,450.00 Get $95.92 Reward

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $69.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $99.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $159.95

Special Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Leica 16-18-21mm f/4.0

Get this Leica 16-18-21mm f/4.0 ,normally $5450.00, on sale at $4796.00 for a total savings of $654.00 and Shipping is free!.

With its impressive angle of view of 107°, this new TRI-ELMAR conquers 16 mm super wide-angle photography in perfect Leica M style. Due to the minimal distortion and barely perceptible field curvature, it can be recommended for highly demanding architecture photography even at the 16 mm setting.

Used on thedigital M8, it produces the image effect of a 21 - 28 mm lens, still enabling extreme wide-angle views. The ultra compact shape is achieved by two aspherical elements.

A new design of the interior focusing significantly enhances the quality in the close-focus range through an adaption of the floating element principle. Brilliant field depth can therefore be used from a distance of 0.33m for hyperfocal photography. Save money by buying the lens in a set together with the Universal Wide-angle Viewfinder M. (not included in this version)

Leica 16-18-21mm f/4.0 Specifications

for 35 mm (24 x 36 mm):

at 16 mm: 107°, 97°, 74°
at 18 mm: 100°, 90°, 67°
at 21 mm: 92°, 81°, 60°
for digital (18 x 27 mm):

at 16 mm: 90°, 80°, 59°
at 18 mm: 84°, 74°, 53°
at 21 mm: 75°, 65°, 46°,
corresponds approx. to a focal length of 21/24/28 mm with 35 mm-format
Optical design
Number of elements / groups: 10 / 7
Focusing range:
0.5 m to Infinity, range from 0.5 to 0.7 m separated by index
Combined meter/feet graduation with uniform grey figures below 0.7 m
Smallest object field: for 35mm

at 16 mm: 915 x 1373 mm, approx. 1:38
at 18 mm: 833 x 1250 mm, approx. 1:35
at 21 mm: 725 x 1087 mm, approx. 1:30
Smallest object field: for digital:

at 16 mm: 688 x 1032 mm, approx. 1:38
at 18 mm: 626 x 939 mm, approx. 1:35
at 21 mm: 545 x 817 mm, approx. 1:30
Highest reproduction ratio: at 0,7 m

at 16 mm: 1:38
at 18 mm: 1:35
at 21 mm: 1:30
Setting / Function:
Preset, with click-stops, half values available
Lowest value:
Leica M quick-change bayonet with 6 bit lens identification bar code for digitalM models
Filter (type)
Male thread, non-rotating and with stop for filter holder or lens hood
Lens hood

screw-on type lens hood (included in delivery), filter holder for E67 size filters optionally available

Length: approx. 62/72 mm (with/without lens hood)
Largest diameter: approx. 54 mm (53 x 58 mm with lens hood)
approx. 11.8 oz / 335 g

Leica 16-18-21mm f/4.0 Reviews

Reviewed by 1 customers

(6 of 6 customers found this review helpful)


3 "Superwide" Focal Lengths In 1 Lens.


from USA  -  Hobbyist/Enthusiast

I wanted a "Leica Lens", with a focal length wider than my Leica 24mm Summilux lens (also, purchased from Adorama) for use on my Leica M9 (again, purchased from Adorama) -- this Leica Tri-Elmar lens fits my needs exactly; and, especially as I already have the Leica 24mm f/1.4 lens, and wanted a choice of focal lengths even wider than a Leica 21mm and 18mm lens. With this Tri-Elmar lens, I am able to quickly select from 16mm, 18mm or 21mm and for a Leica enthusiast that's into "super-wide" shooting, being able to do so and with just one Leica-m Lens, is a plus for me.
