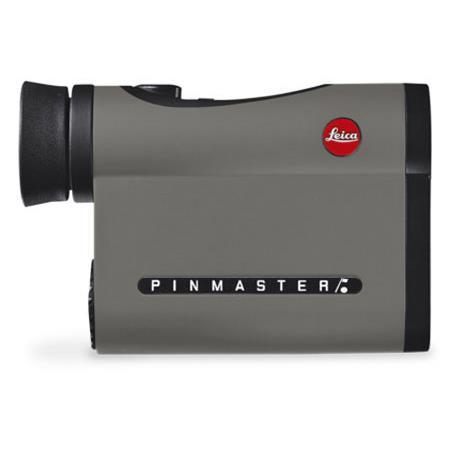

Leica Pinmaster II High-quality 7x Rangefinder, 820yd / 750m Range, LED Display, 3.2' Watertight - Stylish Gray Finish

SKU: LCPM2N

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the range of the Pinmaster II High-quality 7x Rangefinder?

The Pinmaster II High-quality 7x Rangefinder can range distances up to 820 yards or 750 meters.

What is the First Target Logic technology in the Pinmaster II?

The First Target Logic technology in the Pinmaster II is designed to display the distance to the closer target over a farther one. This feature is especially useful for golfers.

Is the Pinmaster II High-quality 7x Rangefinder waterproof?

Yes, the Pinmaster II High-quality 7x Rangefinder is not just water-resistant, but completely waterproof and even submersible up to 3.2 feet.

Can the Pinmaster II High-quality 7x Rangefinder be used with glasses?

Yes, the Pinmaster II features an adjustable ocular with a comfortable rubber eyecup, offering generous eye relief and accurate focusing that accommodates both eye and sunglass wearers.

Can the measurements on the Pinmaster II be displayed in different units?

Yes, the bright, easy-to-read red LED display on the Pinmaster II can be set to show measurements in either yards or meters.

Shopper : Why Did You Choose This?Layne H : My husband told me to buy it for him!

Reviews about this item

Review Summary

Leica Pinmaster II Specifications

  • Magnification

    7x

  • Front lens diameter

    24 mm

  • Exit pupil

    3.4 mm

  • Twilight factor

    13

  • Field of view at 1,000 m

    115 m

  • Field of view at 1,000 yds

    347 ft

  • Eye-relief

    15 mm

  • Objective angle of view

    6.6 deg.

  • Diopter compensation

    +/- 3.5 diopters

  • Distance measurement

    Range: 10 to 825 yd / 10 to 750 m
    Accuracy: +/- 1.1-400.3 yd / 1-366 m
    +/- 2.2-820.2 yd / 2-750 m
    0.5% beyond 820.2 yd / 750 m

  • Read-outs

    LED display with four digits, easily legible in any light

  • Eyepieces for eyeglass wearers

    Yes

  • Eyecups

    Turn down rubber eyecups

  • Prism system

    Roof prism with phase correction coating P40

  • Watertightness

    Watertight to a depth of 1 m/3.2 ft

  • Housing

    Carbon fibre-reinforced plastic material

  • Meter/Yard Selector

    Yes

  • Laser

    Eye-safe invisible laser according to EN and FDA class1

  • Laser beam divergence

    Approx. 0.5 x 2.5 mrad

  • Measuring time

    Maximum approx. 0.85 seconds

  • Measuring mode

    Scanning mode

  • First target logic

    The nearest distance value is displayed when several measured values are available

  • Power supply

    1 x 3 V/Lithium-type C2R

  • Battery lifetime

    Approx. 2,000 measurements at 20 deg. C/68 deg. F

  • Dimensions (W x H x D)

    113 x 75 x 34 mm / 4.5x 2.25 x 1.25 inches

  • Weight

    Approx. 220 g / 7.8 oz including battery

  • UPC Code

    4022243405332

0 Accessories for Leica Pinmaster II High-quality 7x Rangefinder, 820yd / 750m Range, LED Display, 3.2' Watertight - Stylish Gray Finish

About Leica Pinmaster II

Overcome the challenges of distance measurement with the advanced Pinmaster II High-quality 7x Rangefinder from Leica. Sporting a stylish gray finish, this durable and reliable rangefinder is designed to provide an edge in precision, whether you're on a hunting expedition or conducting surveillance.

The Pinmaster II is more than just a rangefinder; it's a versatile optic tool that offers a 7x24 magnification, capable of ranging distances up to an impressive 820 yards or 750 meters. Its First Target Logic technology, specifically developed for golfing, ensures that the closer target is displayed over a farther one, making it an ideal companion for golfers aiming for the flag rather than the bushes beyond.

Constructed from rugged carbon fiber reinforced plastic, the Pinmaster II is built to last. Its internal components are securely held in place by a stable aluminum-alloy chassis, ensuring its reliability in the field. Moreover, it's not just water-resistant, but completely waterproof and even submersible up to 3.2 feet, making it a perfect tool for outdoor adventures in any weather.

Weighing less than half a pound, this lightweight rangefinder is easy to carry around, fitting comfortably into most pockets. Its world-class optical system, featuring a P40 phase-coated roof prism and AquaDura coated lenses, guarantees maximum clarity and detail, even in challenging weather conditions.

The Pinmaster II also boasts an adjustable ocular with a comfortable rubber eyecup, offering generous eye relief and accurate focusing that accommodates both eye and sunglass wearers. Its bright, easy-to-read red LED display can be set to show measurements in either yards or meters, according to your preference.

With its 7x magnification, the Pinmaster II can also double as a hand-held monocular, providing an additional level of versatility. Despite its compact size, this rangefinder delivers excellent twilight performance, thanks to Leica's optical refinements. Experience the power of precision with the Pinmaster II High-quality 7x Rangefinder.

Leica Pinmaster II Features

  • The venerable Pinmaster II has been updated with the improved functionality of target acquisition confirmation, which is indicated by a blinking of the target readout. The improved version is now delivered in a stylish gray finish for product differentiation.
  • Extended 15 mm eye relief accommodates eye/sunglass wearers
  • Prism system: roof prism with P40 phase coating for improved contrast
  • AquaDura coating: hydrophobic external lens treatment offers water and dirt repelling properties to ensure clear viewing at all times. Featuring enhanced abrasion resistance, AquaDura coating allows dirt, dust and fingerprints to be removed easily
  • Chassis: die-cast aluminum alloy
  • Housing: carbon-fiber reinforced plastic
  • Waterproofing: submersible to 3.3' / 1.0 m for 30 minutes
  • Fold down rubber eyecups for sun and eyeglasses wearers
  • LED display: bright led readout is easy to see in any light
  • Measuring modes: single reading, scanning mode, yards, meters
  • Display: 4 character LED / ambient light-controlled / brightness level

Key Features

  • Advanced 7x24 magnification rangefinder with a high range of 820 yards / 750 meters
  • First Target Logic technology for accurate distance measurement to closer targets
  • Durable construction with carbon fiber reinforced plastic housing and aluminum-alloy chassis
  • Completely waterproof and submersible up to 3.2 feet, perfect for outdoor use
  • Adjustable ocular with comfortable rubber eyecup, accommodating both eye and sunglass wearers
  • Bright, easy-to-read red LED display with measurement options in yards or meters

What's in the box:

  • Leica Pinmaster II High-quality 7x Rangefinder
  • Cordura Carry Case
  • Carrying Cord
  • CR2 Battery
  • Leica Passport Warranty (10 Year Accidental / 30 Year on Defects)
