What is the ACD technology in the 7x24 Pinmaster II Pro Golf Laser Rangefinder?

ACD, or Angle Compensated Distance, is an advanced feature in the 7x24 Pinmaster II Pro Golf Laser Rangefinder. It calculates the slope-corrected distance by considering the slope of the terrain and the distance-dependent trajectory of the golf ball.

What is the Leica First-Target Logic feature in the Leica Pinmaster II Pro?

The Leica First-Target Logic is an improved feature in the Leica Pinmaster II Pro that ensures reliable measurements. If you're unsure about the target distance, the device provides a signal when this feature has been successfully applied, eliminating the need for a second measurement.

Is the Leica Pinmaster II Pro suitable for beginners?

Yes, the Leica Pinmaster II Pro is not only for professional players but also beneficial for beginners and players with medium to high handicaps. It provides accurate distance knowledge, instilling confidence and simplifying club selection.

What is the AquaDura coating on the Leica Pinmaster II Pro?

The AquaDura coating on the Leica Pinmaster II Pro is a special lens coating that repels dirt and water, making the device perfect for all-weather use.

Can the readout on the Leica Pinmaster II Pro be switched from meters to yards?

Yes, the Leica Pinmaster II Pro offers the flexibility to switch the readout from meters to yards. It also displays an 'ACD on/off' option in the menu.

Reviews about this item

Review Summary

Leica Pinmaster II Pro Specifications

  • Magnification

    7 x

  • Front Lens Diameter

    24mm / 0.94"

  • Exit Pupil

    3.4mm / 0.13"

  • Twilight Factor

    13

  • Field of View at 1,000 m

    115m / 377.29'

  • Field of View at 1,000 yds

    347' / 105.77m

  • Eye-Relief

    15mm / 0.59"

  • Objective Angle of View

    6.6 deg.

  • Diopter compensation

    +/- 3.5 diopters

  • Angle Compensated Distance

    Yes

  • Distance Measurement

    Range: 10 to 750 m
    10 to 825 yds
    Accuracy: +/- 1 m/yd to 366 m/400 yds
    +/- 2 m/yds to 750 m/825 yds
    +/- 0,5 % over 750 m/825 yds

  • Read-Outs

    LED display with four digits, easily legible in any light

  • Eyepieces for Eyeglass Wearers

    Yes

  • Eyecups

    Turn down rubber eyecups

  • Prism System

    Roof prism with phase correction coating P40

  • Water tightness

    Watertight to a depth of 1 m/3.2 ft

  • Housing

    Carbon fibre-reinforced plastic material

  • Meter/Yard Selector

    Yes

  • Laser

    Eye-safe invisible laser according to EN and FDA class1

  • Laser Beam Divergence

    0.5 x 2.5 mrad(Approx. )

  • Measuring Time

    Maximum 0.85 s(Approx. )

  • Measuring Mode

    Scanning mode

  • First Target Logic

    The nearest distance value is displayed when several measured values are available

  • Power Supply

    1x3 V/Lithium-type C2R

  • Battery Lifetime

    2,000 measurements at 20 deg. C/68 deg. F(Approx.)

  • Dimensions (W x H x D)

    113 x 75 x 34mm / 4.45 x 2.95 x 1.34"

  • Weight

    Including Battery: 220g / 7.76oz (Approx.)

  • UPC Code

    799429405397

2 Accessories for Leica 7x24 Pinmaster II Pro Golf Laser Rangefinder

  • All Accessories (2)
  • Cleaning Accessories (2)

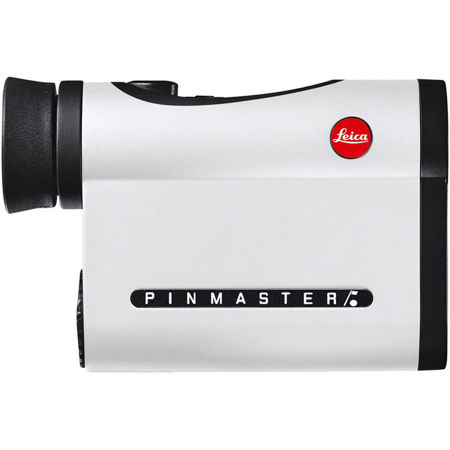

About Leica Pinmaster II Pro

ACD Technology
Angle Compensated Distance (ACD) is the perfect extra for your daily practice at the driving range or when playing a round on the course. The Leica Pinmaster II takes sloping terrain into account to provide a second distance corrected for the slope. But ACD has much more to offer: When calculating the corrected distance, the Leica Pinmaster II takes not only the slope of the terrain into account, but also the distance-dependent trajectory of the golf ball.

Improved Leica First-Target Logic
In the new Leica Pinmaster II Pro, they have improved what was already perfect. With improved Leica First-Target Logic, you can completely rely on your measurement. If you are not certain if you have measured the distance to the right target, the Leica Pinmaster II Pro gives you a little signal when First-Target Logic has been successfully applied. If you have measured the distance to the pin and not the tree behind it, the readout responds with rapid flashing. This saves you the time of taking a second measurement to be sure and lets you concentrate fully on your game. This visual feedback naturally also functions when using ACD technology.

Approved for Handicap Rounds
A golf laser is not only an essential tool for players with single-digit handicaps. Beginners with medium or high handicaps in particular can enjoy the enormous benefits of a golf laser. Knowledge of the right distance brings a lot more certainty and confidence during a round and makes club selection much easier. Beginning in 2016, all golf lasers that allow electronic deactivation of the angle-corrected distance are approved for use in handicap rounds - and that is precisely the case with the Leica Pinmaster II Pro. Alongside the ability to switch the readout from meters to yards, the menu also displays the "ACD on/off" option.

Great Looks
The Leica Pinmaster II Pro in familiar Pinmaster style. Eye-catching - the elegant, premium look of the high-quality white body. The premium look, feel and material quality of the entire Leica Pinmaster family are unrivaled in the colorful world of golf lasers. The Leica Pinmaster II Pro retains all the positive aspects of its predecessor and combines them with new technical highlights like ACD.

Essentials Retained
The new Pinmaster II Pro also features an LED readout with ambient-light-controlled brightness and a unique red LED display. This ensures that the Leica Pinmaster is automatically ready for use and avoids the need to set it up to account for ambient conditions. In combination with the proven qualities of AquaDura coating that lets dirt and water simply roll of the lens, this makes the Leica Pinmaster II Pro the perfect all-weather laser.

What's in the box:

  • Leica 7x24 Pinmaster II Pro Golf Laser Rangefinder
  • Cordura Carry Case
  • Carrying Cord
  • CR2 Battery
  • Leica Passport Warranty (10 Year Accidental / 30 Year on Defects)
