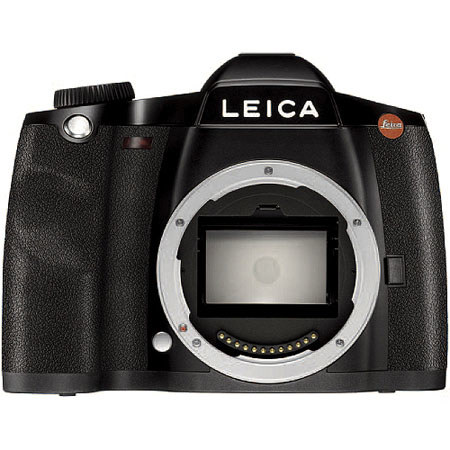

| Camera type |
Digital single-lens reflex camera for use with Leica S lenses |
| Image sensor |
Low-noise Kodak CCD sensor |
| Resolution |
37.5 megapixels (7,500 x 5,000) |
| Pixel spacing |
6µm |
| Aspect ratio |
3:2 |
| Dynamic range |
12 stops |
| Color depth |
16 bits per pixel |
| Sensitivity range |
ISO 80 to 1250 (manual or automatic control) |
| Data storage (format) |
DNG (approx. 75 MB per image), JPEG (basic or fine) |
| Memory cards |
CompactFlash (up to 64 GB), SD cards (HC) |
| Maximum frame rate |
1.5 images/s |
| Buffer memory |
1 GB (for a minimum sequence of 8 images in DNG format) |
| Control monitor |
3-inch TFT with 460,000 pixels, 16 million colors |
| Cover glass |
Highly abrasion and scratch resistant sapphire glass (only with the LEICA S2-P) |
| Connections |
High-speed USB 2.0 (robust connection with strain-relief, cable included), HDMI, remote release, X sync, SCA3002 |
| Exposure metering |
Multi-field metering (5 fields), centre-weighted integral metering, spot metering (3.5%) |
| Exposure control |
Program mode (with Shift function), shutter priority, aperture priority, manual metering |
| Shutter |
Metal focal-plane shutter integrated in body: 1/4000 s to 32 s (B to 120 s), flash sync time: 1/125 s, optional leaf shutter in selected lenses: 1/500 s to 32 s, flash synch time: All speeds |
| Flash operation |
Metering method: TTL (multi-field, center-weighted, spot), TTL-HSS rapid synchronization up to 1/4000 s with focal plane shutter, Compatibility: fully compatible with LEICA SF 58 and devices with SCA3002 adapters |
| Auto Focus |
Central crosshair sensor, focusing drive in lens |
| Operating Modes |
AF Continuous, AF Single, MF, MF Override |
| Viewfinder |
High eye-point pentaprism viewfinder |
| Magnification |
0.86x, viewfinder field: 96%, dioptre compensation -3 to +1 |
| Focusing screen |
Matte with cross-hairs (interchangeable) |
| Power supply |
Li-Ion battery (7.4 V, 2150 mAh) |
| Housing |
Die-cast magnesium |
| Size (without lens) |
160 x 120 x 80 mm |
| Weight |
1410 g (including battery) |
| Warranty |
Leica warranty |
