| Camera type |

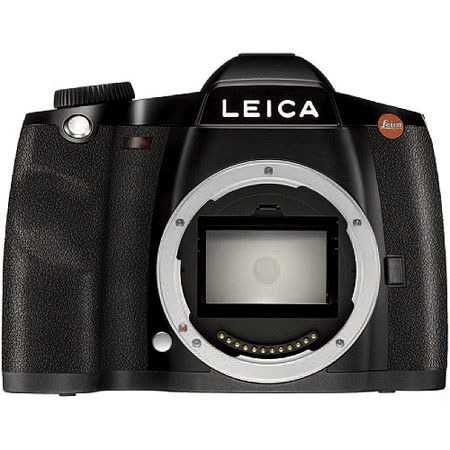

Digital single-lens reflex camera for use with Leica S lenses |
| Image sensor |
Low-noise Kodak CCD sensor 37.5 megapixels (7,500 x 5,000) 45 x 30 mm 6 µm pixel spacing 3:2 aspect ratio Dynamic range: 12 stops Color depth: 16 bits per pixel Low pass filter: none (moire suppression using digital processing) |
| Sensitivity range |
ISO 80 to 1250 (manual or automatic control) |
| Data storage (format) |
DNG (approx. 75 MB per image) JPEG (basic or fine) |
| Memory cards |
Compact Flash (up to 64 GB) SD cards (HC) |
| Maximum frame rate |
1.5 images/s 1 GB buffer 8 images in a burst (DNG) |
| Control monitor |
3-inch TFT 460,000 pixels 16 million colors Cover glass: highly abrasion and scratch resistant sapphire glass (only with the LEICA S2-P) |
| Connections |
High-speed USB 2.0 (robust connection with strain-relief, cable included HDMI Remote release X sync SCA3002 |
| Exposure metering |
Multi-field metering (5 fields) Center-weighted integral metering Spot metering (3.5%) |
| Exposure control |
Program mode (with Shift function) Shutter priority, aperture priority, manual metering |
| Shutter |
1/500 s to 32 s, flash synch time: All speeds |
| Flash operation |
Metering method: TTL (multi-field, center-weighted, spot) TTL-HSS rapid synchronization up to 1/4000 s with focal plane shutter Fully compatible with LEICA SF 58 and devices with SCA3002 adapters |
| Auto Focus |
Central crosshair sensor Focusing drive in lens |
| Operating Modes |
AF Continuous AF Single MF (with override) |
| Viewfinder |
High eye-point pentaprism viewfinder Coverage: 96% Magnification: 0.86x Diopter: -3 to +1 Focusing screen: Matte with cross-hairs (interchangeable) |
| Power supply |
Li-Ion battery 7.4 V, 2150 mAh |
| Body |
Die-cast magnesium Resistant to dust and dripping/splashing water |
| Dimensions |
160 x 120 x 81 mm (6.3 x 4.7 x 3.2 in) |
| Weight (no lens) |
1.4 kg (3.1 lb) |
| Warranty |
Leica warranty |
