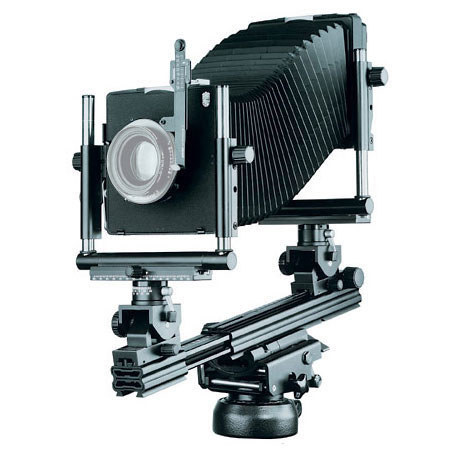

basic unit consisting of: Telescoping monorail 380-585 mm /15-23 in., Front and interchangeable back standard 45, Normal Kardan bellows 45, 500 mm/20 in., Snap-on Kardan back 45 with groundglass frame and cm-grid groundglass.
not included: lens/lensboard
|
| Lightweight system camera for studio and location, combining the proven design details of the KARDAN range with an innovative monorail and new base tilt elements providing tri-axial camera adjustments to yield yaw-free movements both with direct and indirect displacements. The telescoping monorail guarantees outstanding stability. Special dovetail fittings allow to freely slide the entire monorail back and forth on all tripod heads thus featuring full macro focusing capability and wide angle efficiency as no encircling clamp has to be used. Center swings and tilts for uncomplicated Scheimpflug adjustments, factory adjusted parallel locks on the base tilt elements guarantee perfect camera alignment also with inclined monorail. There are three formats of the Kardan GT available: 4x5, 5x7, 8x10 inch |
 |
yaw free system with telescoping rail and optical axis movements. Available in 4x5 to 8x10" |
| Type | Monorail Camera |
| Format | 4x5 |
| Camera Movements | - |
| Rise | Front: 2.2" (56mm) rise, 1" (25mm) fall, Rear: 2.2" (56mm) rise, 1" (25mm) fall |
| Swing | 360 degrees |
| Tilt | 30 degrees forward + 40 degrees base tilt, 40 degrees backward + 40 degrees base tilt |
| Lateral shift | Front: 2.4" (60mm) left, 3.2" (80mm) right, Rear:3.2" (80mm) left, 2.4" (60mm) right - as per calibrations |
| Back swing | 360 degrees |
| Back tilt | 30 degrees forward + 40 degrees base tilt, 40 degrees backward + 40 degrees base tilt |
| Camera back | 4x5" Vertical/Horizontal quickchange International Standard Graflok |
| Track extention | Telescopes from 15-23" (380-585mm) |
| Bellows extention | Min.:100mm (4") with standard bellows and flat lensboard, 80mm (3.2") with wide-angle bellows and flat lensboard, 60mm (2.4") with wide-angle bellows and recessed lensboard
Max.: 20" (500mm) limited by included bellows |
| Lens panel | Linhof Kardan Type 162x162mm |
| Dimentions | 15 x 9.5 x 14" (380 x 240 x 355mm) L.W.H. |
| Weight | 9.7 lbs. (4.4kg) |
| | |
|
