Linksys EA4500 Dual-Band N900 Router with Gigabit and USB, 2.4 and 5 GHz Radio Frequency

SKU: LKEA4500 MFR: EA4500-NP
Linksys EA4500: Picture 1 thumbnail Linksys EA4500: Picture 2 thumbnail Linksys EA4500: Picture 3 thumbnail Linksys EA4500: Picture 4 thumbnail Linksys EA4500: Picture 5 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Ways To Save

Product Highlights

  • Gigabit Transfer Rate
  • Connects Wirelessly
  • WEP / WPA / WPA2
  • 2.4 GHz / 5 GHz
  • 802.11 n/g/b/a
  • N-Technology
  • 1000 Mbps
  • Dual-band

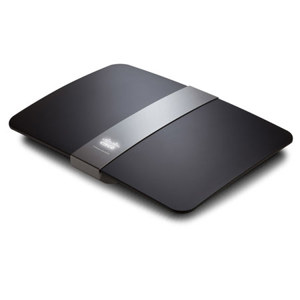

Linksys EA4500: Picture 1 regular $134.99

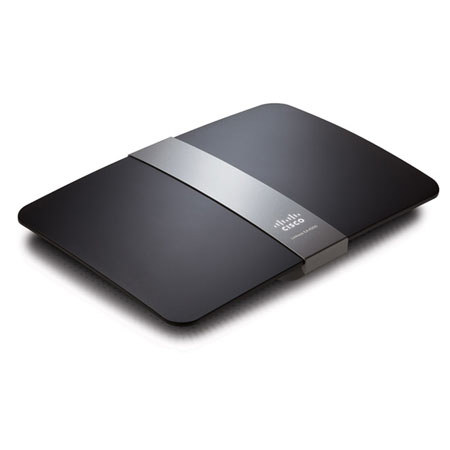

About Linksys EA4500

The Linksys N900 Router offers wireless speeds for fast video and music streaming. Connect your computers, Internet-ready TVs, game consoles and other Wi-Fi devices at transfer rates up to 450 + 450 Mbps speed for a premium home network experience. Built with leading 802.11n wireless technology, the Linksys EA4500 offers maximum range to create a powerful wireless network. Full 3x3 MIMO antenna array boosts signal strength to provide exceptional coverage and reliability so you can enjoy your wireless network from anywhere in your home.

Double your network bandwidth with dual-band N (2.4 and 5 GHz) designed to avoid interference and maximize throughput for smoother and faster HD video streaming, file transfers and wireless gaming. Use the 4 Gigabit Ethernet (10/100/1000) ports for quick file sharing, 10x faster than standard Ethernet, between other Gigabit enabled devices like computers, hard drives and servers. The USB port lets you add a range of devices such as storage and printers to share files at home or over the Internet for greater access to more information.

Linksys EA4500 Features

  • Dual-band 3x3 wireless supports high bandwidth applications such as video streaming or file sharing with speed up to 450+450Mbps
  • Wireless-N technology uses multiple radios to create a robust signal that travels farther and faster, with reduced dead spots
  • All ports support Gigabit speed and Auto-Crossover (MDI/MDI-X) - no need for crossover cables
  • Storage Link transforms any USB storage device into a NAS
  • USB Port Support for USB printer
  • Built-in UPnP AV Media Server, streams music, video and photos to any compatible media adapter
  • Guest Access feature allows your visitors access to the Internet, but not your computers or data
  • Compatible with Wireless-A (802.11a), Wireless-B (802.11b) and Wireless-G (802.11g) standards
  • IPv6 Ready
  • Supports up to 128-bit wireless encryption and SPI firewall

Linksys EA4500 Specifications

Simultaneous 2.4 GHz and 5 GHz
3 x 3 for 2.4 GHz, 3 x 3 for 5 GHz
6 internal
Software Setup
CD Install
Ethernet Ports x Speed
4 x Gigabit
Cisco Connect Software
Yes, App Enabled
USB Port
Yes, Shared Storage, Virtual USB and Media Server
Minimum System Requirements
PC: Wi-Fi enabled PC with CD or DVD drive, running Windows XP SP3, Windows Vista SP1 or later, or Windows 7
Mac: Wi-Fi enabled Mac with CD or DVD drive, running OS X Leopard 10.5.8 or later, Snow Leopard 10.6.1 or later, or Lion 10.7 or later
Web Browser: Internet Explorer 7, Safari 4, or Firefox 3 or higher for optimal browser-based configuration
802.11n, 802.11a, 802.11g, 802.11b, 802.3, 802.3u, 802.3ab
Switch Port Speed
10/100/1000 Mbps (Gigabit Ethernet)
Power, USB, Internet, Ethernet (1-4)
Reset, Wi-Fi Protected Setup
Top Panel: Power
Back Panel: Internet, Ethernet 1-4
No of Antennas
6 total, 3 internal antennas per each 2.4GHz & 5GHz radio band
802.11b: CCK, QPSK, BPSK
802.11g: OFDM
802.11a: OFDM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
Receive Sensitivity
802.11b: -87dBm minimum @ 11Mbps
802.11g: -77dBm minimum @ 54Mbps
Wireless-N 20MHz: -70dBm minimum @ MCS23
Wireless-N 40MHz: -66dBm minimum @ MCS23
802.11a: -74dBm minimum @ 54Mbps
Wireless-N 20MHz: -67dBm minimum @ MCS23
Wireless-N 40MHz: -64dBm minimum @ MCS23
Antenna Gain in dBi
2.4GHz (3 internal PIFA antennas)
PIFA 1 = 3.31 dBi (Right)
PIFA 2 = 3.45 dBi (Front)
PIFA 3 = 1.96 dBi (Left)
5GHz (3 internal PIFA antennas)
PIFA 1 = 3.71 dBi (Right)
PIFA 2 = 3.60 dBi (Front)
PIFA 3 = 4.27 dBi (Left)
Supported File Systems
Storage Device: FAT32, NTFS and HFS+
Security key bits
Up to 128-bit encryption
12V, 2A
FCC, IC, CE, Wi-Fi a/b/g/n, Windows 7, DLNA, IPv6 Gold
Operating Temp.
0deg.C to 40deg.C (32deg.F to 104deg.F)
Storage Temp.
-20deg.C to 60deg.C (-4deg.F to 140deg.F)
Operating Humidity
10% to 80% relative humidity and Non-Condensing
Storage Humidity
5% to 90% Non-Condensing
Dimensions (W x H x D)
225 x 25 x 160 mm / 8.85 x 0.98 x 6.29"
0.36 kg / 0.79 lbs
