| Display Technology |
0.55" DMD S450(DDP2431) |
| Native Resolution |
XGA (1024x768) |
| Brightness (ANSI-Lumens) |
3200 |
| Contrast Ratio (FOFO) |
2300:1 |
| Noise: High Brightness |
35dB |
| Noise: Economic |
32dB |
| Uniformity (min) JBMA |
>90% |
| Color wheel |
4 segment (RGBW) |
| Projection Lens: Focus |
Manual |
| Projection Lens: Zoom |
Manual 1.17x |
| Projection Image: Standard |
100"@4.0m |
| Projection Image: Throw Ratio |
1.94/2.27 |
| Projection Offset |
115% |
| Lamp: Type |
UHP/230W |
| Lamp: Life High Brightness |
3000 Hr |
| Lamp: Life Economic |
4000 Hr |
| Aspect Ratio Control |
Native 4:3, Support 16:9 |
| Sound |
5W+5W Stereo |
| Digital (DVI, HDMI) |
1080p/1080i/720p/576p/480p up to 1600x1200@60 |
| RGB |
Up to 1680x1200@60 |
| Component Video |
1080P/1080i/720p/576p/576i/480p/480i |
| Composite Video (incl. S-Video) |
NTSC-M/NTSC 4.43/PAL-M,N,60,B,D,G,H,I/SECAM |

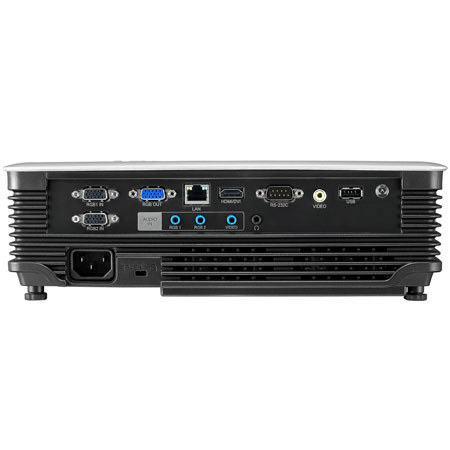

| Input/Output Terminal |
2 x RGB in
2 x RGB (PC) Audio in
1 x RGB out
1 x RS-232C
1 x Composite (AV) in
2 x Component (YPbPr)-(thru RGB)
1 x Audio out
1 x RJ45 (Ethernet)
1 x HDMI (Ver 1.4 3D)
1 x USB (Photo, Movie, Music, Fileviewer) |
| Quick Power on/off |
Yes |
| Brilliant Color |
Yes |
| Expert control |
Yes |
| Color Temperature |
Yes |
| Image Flip |
Horizontal-Vertical |
| Advanced Keystone (Vertical) |
Yes |
| Imagine Flip (Horizontal/Vertical) |
Yes |
| Power Consumption |
298W |
| Power Supply |
AC 100 - 240V (Free Voltage), 50Hz/60Hz |
| Menu Language |
Korean/English/French/Spanish/German/Italian/Swedish/Portuguese/Chinese Simplified/Polski/Brazilian Portuguese |
| Safely Regulation |
CE, FCC, CB, KC, KCC, UL, Class-B |
| Dimensions |
292 x 260 x 80 mm/11.49 x 10.23 x 3.14" |
| Weight |
3.5 kg/7.71 lb |
