Logisys

Logisys 20" True-Color CCFL Light Bar, 30000Cd/m2 Brightness, White

SKU: LOCXF20WT MFR: CXF20WT
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$20.00
Qty:

Add to Wishlist

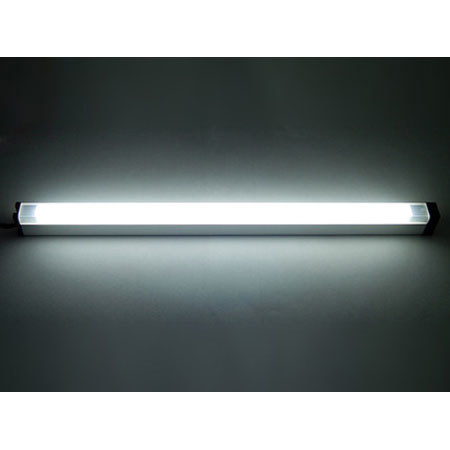

About the Logisys CXF20

Logisys 20" True-Color CCFL Light Bar (White) uses the most advanced cold cathode lighting technology, which was mainly adapted in LCD/Plasma backlit sources for its sharpness and brightness. By using the newly developed micro inverter built in the light bar, there is no more bulky transformer, inverter or HV wire. This light bar emits life-like true-color natural light with little heat generated, and it is more adaptive and simple in installation as it can be connected directly through the easy grip connector which makes the installation a snap. Just plug and go.

This True-Color Light Bar is a perfect solution for small area lighting such as commercial and residential cabinets, indoor or under roof accent lights etc and for all illumination applications.

Logisys CXF20 Includes

  • Logisys 20" True-Color CCFL Light Bar
  • Cold Cathode Lamp
  • Built-in Micro Inverter
  • 16" Wire with Easy Grip Connector
  • Installation Kit
  • Easy Installation Clips
  • Velcro Tape
  • Zip Tie
  • Logisys Warranty

Logisys CXF20 Specifications

Naked Lamp Diameter 2.6+/-1.0mm
Tube Length 20"(appr. 510mm)
Inverter Input Voltage 12VDC
Lamp Voltage 1000V +/-10%
Frequency 60KHz +/-10%
Lamp Current 6.5mA +/-1.0
Total Power 6.2W
Brightness 30000Cd/m2
External Tube and Base Dimensions 12mm x 22.5mm / 0.47 x 0.88 inches
