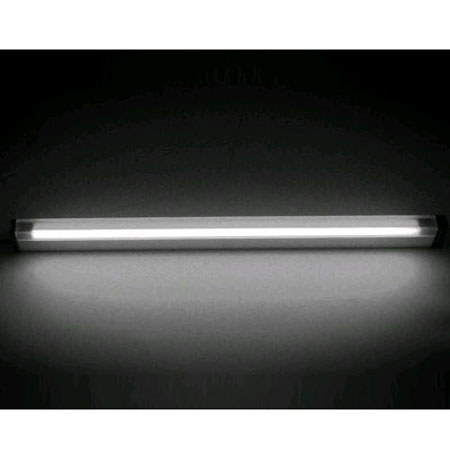

Logisys 12" True-Color CCFL White Side Light Bar

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Add to Wishlist

About the Logisys CXS12

The Logisys 12" True-Color CCFL White Side Light Bar uses the most advanced cold cathode lighting technology, which was mainly adapted in LCD/Plasma backlit sources for its sharpness and brightness. By using the newly developed micro inverter built in the light bar, there is no more bulky transformer, inverter or HV wire. This light bar emits life-like true-color natural light with little heat generated and it is more adaptive and simple in installation as it can be connected directly through the easy grip connector which makes the installation a snap. Just plug and go.

This True-Color Light Bar is a perfect solution for small area lighting such as commercial and residential cabinets, indoor or under roof accent lights etc and for all illumination applications.

Logisys CXS12 Includes

  • Logisys Cold Cathode Lamp
  • Built-in Micro Inverter
  • 16" Wire with Easy Grip Connector
  • Installation Kit
  • Installation Clips
  • Velcro Tape
  • Zip Tie
  • Logisys Warranty

Logisys CXS12 Specifications

Naked Lamp Diameter 2.6+/-1.0mm
Tube Length 12"(appr. 305mm), 20"(appr. 510mm)
Inverter Input Voltage 12VDC
Lamp Voltage 1000V +/-10%
Frequency 60KHz +/-10%
Lamp Current 6.5mA +/-1.0
Total Power 7.2W
Brightness 30000Cd/m2
Light Fact 90 Degree
External Tube and Base Dimensions 12mm x 22.5mm/0.47 x 0.88"
