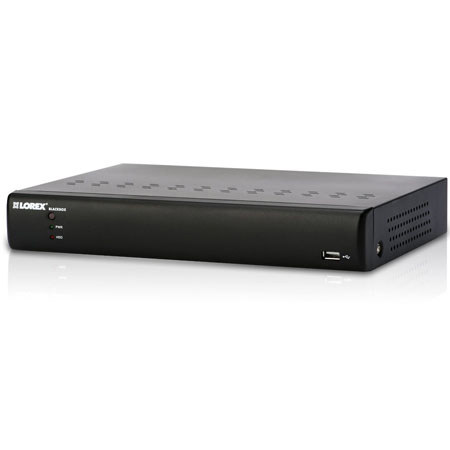

Lorex Eco BlackBox 4-Channel Network DVR with 4 Indoor/Outdoor IR Cameras, 480 TV Lines Resolution, 50' (15.2m) Night Vision, 500GB HDD

SKU: LRX014501C4F MFR: LH014501C4F
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist In Stock

About this item

Watch over your world from anywhere in the world using this economical security, the Lorex Eco BlackBox 4-Channel Network DVR with 4 Indoor/Outdoor IR Cameras that is ideal for business or home. The DVR is both PC and Mac compatible. Connect to your system on any device, no matter where you are over a 3G/4G or Wi-Fi network. Record on a specialty hard drive designed for surveillance, providing weeks or even months of reliable video.

Connect to a TV, PC, or CCTV monitors with industry standard VGA and BNC inputs. The new intuitive interface with simple icons allows for easy and efficient security DVR programming. The system includes indoor/outdoor security cameras with infrared night vision as well as all accessories required for the installation.

What's Included With This Item

  • Lorex 4 Ch DVR with 500GB HDD
  • Remote Control
  • Power Adapter
  • Mouse
  • Ethernet Cable
  • CD
  • QSG
  • Instruction Manual
  • 4 x Cameras
  • 4 x Camera Stands
  • 4 x 60ft BNC/DC Extension Cables
  • 4" 1 Camera Power Adaptors
  • Lorex Warranty

Key Features

  • 24/7 100% Duty cycle hard drive pre-installed: The hard drives are designed to work in a security environment, including simultaneous recording & playback from various streams
  • Exclusive LOREX Easy Connect Internet Set-up Wizard: Simple installation process for user convenience
  • Indoor/Outdoor: Camera performs both in outdoor and indoor applications
  • DVR: H.264 video compression
  • DVR: 4-ch (720x240) resolution Real time recording
  • DVR: Pentaplex operation - View, Record, Playback, Back Up & Remotely Control the system simultaneously
  • DVR: PTZ cameras supported (RS485)
  • DVR: Exclusive LOREX Easy Connect Internet Set-up Wizard
  • DVR: Instant Mobile Viewing on compatible Smart phones & Tablets
  • DVR: PC and Mac Compatible (Internet Explorer & Safari browsers)
  • DVR: Free LOREX DDNS (Dynamic Domain Name Service) for advanced remote connectivity at all times
  • DVR: Instant email alerts with snap shot attachment
  • DVR: Accurate Time Stamps with NTP & Daylight Savings Time
  • Cameras: Advanced image sensor produces high resolution video at 480 TV Lines of resolution
  • Cameras: Picture automatically switches to Black & White delivering better clarity in low light conditions
  • Cameras: Clean & crisp night vision up to 75ft (22m) / 50ft (15m) away in total darkness
  • Cameras: 30 Covert IR LED's don't glow red making it difficult to detect the camera at night
  • Cameras: 4.6mm medium angle lens with a 57deg. diagonal field of view for improved object recognition
  • Cameras: Vandal resistant design with cable pass-through bracket
  • Cameras: IP66 weatherproof rated - ideal for outdoor and indoor applications
  • Cameras: Flexible mount offers wall and ceiling installation options

Technical Specs

DVR: Operating System Linux (embedded)
DVR: Pentaplex Simultaneous View, Record, Playback, Backup & Remote Monitoring
DVR: Number of Channels 4 Channels
DVR: Video In 4 x 1Vp-p, CVBS, 75ohms, BNC
DVR: Video Out 4-ch: 2 x BNC
DVR: VGA Out 4-Ch: Yes
DVR: Audio In 4 ch: 1 Line in(RCA), G.711
DVR: Audio Out 4 ch: 1 line out(RCA), G.711
DVR: USB Port 1 at the back for Mouse, 1 at the front for firmware upgrade & USB backup
DVR: Video Output Resolution 800x600, 1024x768, 1280x1024
DVR: PTZ control RS-485 Pelco D & P Protocol
DVR: Live Display 4 Ch: 1.4
DVR: Live Display Speed 120 (4 ch) NTSC
100 (4 ch) PAL
DVR: System Navigation USB Mouse, IR Remote Controller
DVR: Motion Area Setting Adjustable grid (10 x15) NTSC
Adjustable grid (12 x15) PAL
DVR: Sensitivity levels 8
DVR: Firmware Upgrade Via USB device and Network
DVR: User Authority By user group
DVR: Time Synchronization Auto time sync by NTP server
DVR: Video Compression H.264
DVR: Audio Compression G.711
DVR: Recording Resolution 4 ch: NTSC: 360x240 (CIF), 720x240 (HD1), 720x480 (D1)
4 ch: PAL: 360x288 (CIF), 720x288 (HD1), 720x576 (D1)
DVR: Recording Speed 4 ch: 120/100 (NTSC/PAL) at CIF, HD1, 60/50 (NTSC/PAL) at D1
DVR: Recording Resolution Setting Per camera for different resolutions (CIF/2CIF/D1)
DVR: Recording Quality Control 3 levels
DVR: Recording Schedule By hour, by day, by recording mode, by motion, by channel
DVR: Pre Recording Max. 10 Secs
DVR: Post Recording Max. 5 Minutes
DVR: Reliability Watch-Dog, Auto-recovery after power failure
DVR: Covert Video Yes
DVR: Playback Channel 1-4 Adjustable(4ch)
DVR: Playback Speed Variable Max16x
DVR: Playback Players Backup Player
DVR: Search By time & event
DVR: Log Search Up to 10,00,000 lines for motion detected, configuration changes, connects/disconnects and video loss
DVR: Audio Play Yes
DVR: Storage 4 ch: Up to 1 HDD's (SATA)
DVR: Maximum Capacity 4 ch: Upto 2TB
DVR: Backup Media USB Flash Drive & HDD
DVR: Backup File Format H.264 file (AVI generator included)
DVR: Easy Connect Lorex Auto Port Forward Wizard
DVR: Supported Operating Systems Windows XP, Vista, 7
OSX Snow Leopard 10.6 or above
DVR: Browsers Internet Explorer & Safari 6.0
DVR: Email notification Text with snapshot
DVR: Instant Smart Phone Compatibility Smart Phone & Tablet Compatibility: iPad, iPhone, BlackBerry (supported model numbers: 9000, 9700, 9800), Android (version 1.5 & above), Windows Mobile (6.0, 6.5), Symbian 3rd & 5th generation phones
DVR: System Configuration Full setup configuration over network
DVR: Ports Programmable by User
DVR: Network Protocol TCP/IP / DHCP / UDP / DDNS / PPPoE
DVR: Network Interface 10/100-Base-TX, RJ-45
DVR: Network Speed Control 48Kb-8MB/sec
Camera: Image Sensor 1/4" Color Image Sensor
Camera: Video Format NTSC
Camera: Effective Pixels H: 668 V: 512
Camera: Resolution 480 TV Lines
Camera: Scan System 2:1 Interlace
Camera: Sync System Internal
Camera: S/N Ratio 46.8dB (AGC Off)
Camera: Iris AES
Camera: AES Shutter Speed 1/60 - 1/100,000 Sec
Camera: Min. Illumination 0.1 Lux without IR LED
0 Lux with IR LED
Camera: Video Output Composite 1.0Vpp at 75 ohm
Camera: Lens / Lens Type 4.6mm F2.0 / Fixed
Camera: FOV (Diagonal) 57deg.
Camera: Termination BNC Type
Camera: IR LED Qty / Type 30 pieces / 940nm
Camera: Night Vision Range 75ft (22.8m) / 50ft (15.24m)
Camera: Power Requirement 12V DC ±10%
Camera: Power Consumption Max. 230mA (w/IR)
Camera: Operating Temp. Range 14deg. - 122deg.F / -10deg. - 50deg.C
Camera: Operating Humidity Range < 95% RH
Dimensions (WxDxH) 440x195x285mm / 17.32x7.67x11.22"
Weight Camera: 0.7lbs / 0.3kg (including Stand)
6.5 kg/14.40 lbs
