Lorex 4ch Digital Wireless Security Camera System
Lorex

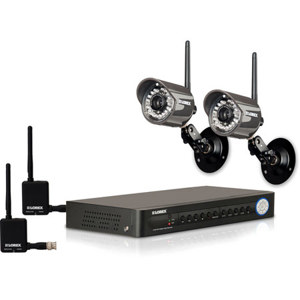

Lorex 4ch Digital Wireless Security Camera System, 500GB HDD, CMOS Image Sensor/5.1mm Lens, 1 DVR/2 Cameras/2 Receivers, Night View Distance(60')

SKU: LRXLH114C2WB MFR: LH114501C2WB
What's Included
What's Included With This Item:
  • Lorex 4 Channel DVR
  • 500GB HDD Pre-Installed
  • Remote Control & "Flex" IR Controller
  • Power Adapter for DVR
  • Mouse
  • Ethernet Cable
  • DVI to VGA Converter
  • 2 x Digital Wireless Cameras
  • 2 x Wireless Receivers
  • 2 x Camera Stands
  • Camera/Receiver Power Adapters
  • 2 Screws (for Key-Hole Style VESA Mounting)
  • Lorex 1 Year Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

We’re sorry, this item is no longer available. Click here for similar / suggested items.
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Lorex LH114501C2WB Digital Wireless Security Camera System consists of a 4-channel digital video recorder, 2 wireless cameras and 2 wireless receivers. The DVR records videos in VGA and CIF formats and supports real-time viewing at CIF resolution. H.264 compression helps reduce video file sizes without compromising on the quality and integrity of images.

Pentaplex operation allows you to view, record, playback, backup and remotely control the system simultaneously. The DVR comes pre-installed with a 500 GB hard drive featuring a 24/7 100% duty cycle for enhanced reliability. Data can easily be archived via the provided USB ports.

Multiple receivers can be connected to the DVR to create a wireless surveillance solution. You can immediately view the recorded videos on compatible smartphones and on PCs with Microsoft Windows 7, Vista and XP operating systems. The Free LOREX DDNS (Dynamic Domain Name Service) helps provide remote connectivity at all times.

Featuring a CMOS image sensor and a 5.1mm lens, the wireless camera delivers clear videos at resolutions up to 640 x 480 pixels. It comes with a built-in auto-mechanical infrared camera filter that offers precise color reproduction in varying lighting conditions. The camera has indoor and outdoor wireless ranges up to 150' (46 m) and 450' (137 m) respectively. A minimum illumination of 0 lux ensures clear images even in complete darkness for up to 60' (18 m). The camera has an IP-66 rating, thus ensuring smooth operation both in dry and wet conditions. In addition, it comes with a 3D-flex stand that allows for quick and easy positioning.

The security camera system also includes a wireless receiver that obtains feeds from the cameras and connects directly to the back of a DVR for a clutter-free installation. The receiver alerts the user in case the camera goes out of range. Moreover, it comes with a high gain antenna for enhanced noise reduction and improved long distance operation.

Frequency-Hopping Spread Spectrum (FHSS) Digital Wireless Technology offers high resistance to narrowband interference and is difficult to intercept. It can share a frequency band with many types of conventional transmissions with minimal interference.

What's Included With This Item

  • Lorex 4 Channel DVR
  • 500GB HDD Pre-Installed
  • Remote Control & "Flex" IR Controller
  • Power Adapter for DVR
  • Mouse
  • Ethernet Cable
  • DVI to VGA Converter
  • 2 x Digital Wireless Cameras
  • 2 x Wireless Receivers
  • 2 x Camera Stands
  • Camera/Receiver Power Adapters
  • 2 Screws (for Key-Hole Style VESA Mounting)
  • Lorex 1 Year Warranty

Key Features

  • 4-Channel Digital Video Recorder: Records videos in VGA and CIF formats
  • 4-Channel Digital Video Recorder: Supports real-time viewing at CIF resolution
  • 4-Channel Digital Video Recorder: H.264 compression helps reduce video file sizes without compromising on the quality and integrity of images
  • 4-Channel Digital Video Recorder: Pentaplex operation allows you to view, record, playback, backup and remotely control the system simultaneously
  • 4-Channel Digital Video Recorder: Comes pre-installed with a 500 GB hard drive featuring a 24/7 100% duty cycle for enhanced reliability
  • 4-Channel Digital Video Recorder: Easy archival via USB ports
  • 4-Channel Digital Video Recorder: Multiple receivers can be connected to the DVR to create a wireless surveillance solution
  • 4-Channel Digital Video Recorder: Immediate viewing of the recorded videos on compatible smartphones and on PCs with Microsoft Windows 7, Vista and XP operating systems
  • 4-Channel Digital Video Recorder: Free LOREX DDNS (Dynamic Domain Name Service) for remote connectivity at all times
  • 2 Wireless Cameras: CMOS image sensor and 5.1 mm lens help deliver clear videos at resolutions up to 640 x 480 pixels
  • 2 Wireless Cameras: Built-in auto-mechanical infrared camera filter for precise color reproduction in varying lighting conditions
  • 2 Wireless Cameras: Indoor and outdoor wireless ranges up to 150' (46 m) and 450' (137 m) respectively
  • 2 Wireless Cameras: Minimum illumination of 0 lux ensures clear images even in complete darkness for up to 60' (18 m)
  • 2 Wireless Cameras: Frequency-hopping spread spectrum (FHSS) Digital Wireless Technology offers high resistance to narrowband interference; is difficult to intercept; can share a frequency band with many types of conventional transmissions with minimal interference
  • 2 Wireless Cameras: IP-66 rating ensures smooth operation both in dry and wet conditions
  • 2 Wireless Cameras: 3D-flex stand allows for quick and easy positioning
  • 2 Wireless Receivers: Obtains feeds from the cameras and connects directly to the back of a DVR for a clutter-free installation
  • 2 Wireless Receivers: Alerts the user in case the camera goes out of range
  • 2 Wireless Receivers: High gain antenna for enhanced noise reduction and improved long distance operation

Technical Specs

Operating System Linux (embedded)
Pentaplex Operation Simultaneous View, Record, Playback, Backup & Remote Monitoring
Channels 4
Input/Output: Video Input 4 x 1 Vp-p, CVBS, 75 ohms, BNC/DIN
Input/Output: Video Output 2 x BNC
Input/Output: VGA Output Yes
Input/Output: Audio In 4 Line in (RCA), ADPCM
Input/Output: Audio Output 2 line out(RCA), ADPCM
Input/Output: USB Port 2 at the back
Input/Output: PTZ Control RS-485 Pelco D & P Protocol
Display: Live Display 1, 4
Display: Live Display Speed 120 (NTSC)
100 (PAL)
Display: OSD On / Off
Display: System Navigation USB Mouse, IR Remote Controller, Front Panel
Display: Motion Area Setting Adjustable grid (10 x 15) NTSC
Adjustable grid (12 x 15) PAL
Display: Sensitivity Levels 8
Display: Firmware Upgrade Via USB device
Display: User Authority By user group
Display: Time Synchronization Auto time sync by NTP server
Recording: Video Compression H.264
Recording: Audio Compression ADPCM
Recording: Recording Resolution NTSC: 360x240 (CIF), 720x240 (HD1), 720x480 (D1)
PAL: 360x288 (CIF), 720x288 (HD1), 720x576 (D1)
Recording: Speed 120/100 (NTSC/PAL) @ CIF, 60/50 (NTSC/PAL) @ HD1, 30/25 (NTSC/PAL) @ D1
Recording: Recording Resolution Setting Per camera for different resolutions (CIF / 2CIF / D1)
Recording: Recording Quality Control 3 levels
Recording: Image Size 768-1536 KB (D1), 512-768 KB (HD1), 384-512 KB (CIF)
Recording: Recording Schedule By hour, by day, by recording mode, by alarm, by ch
Recording: Pre Recording Max. 10 Sec.
Recording: Post Recording Max. 5 Minutes
Recording: Reliability Watch-Dog, Auto-recovery after power failure
Recording: Covert Video Yes
Playback: Channel 1,4
Playback: Speed Variable Max 16x
Playback: Playback Players Backup Player
Playback: Search By time & event
Playback: Log Search Up to 10,000 lines for user login/out, configuration changes, remote access, connects/disconnects
Playback: Audio Play Yes
Storage Up to 1 HDD (SATA)
Maximum Capacity Up to 2 TB
Backup Media USB Flash Drive & HDD
Backup File Format H.264 file (AVI generator included)
Easy Connect Lorex Auto Port Forward Wizard
Supported Operating Systems Windows XP, Vista, 7
Mac OSX Snow Leopard 10.6
Browser Compatibility Internet Explorer & Safari 5.0
Email Notification Text with snapshot
Instant Smart Phone Compatibility Instant Smart Phone Compatibility on iPhone, BlackBerry (supported model numbers: 9700, 9000), Android (version 1.5 & above), Window Mobile (6.0, 6.5), Symbian 3rd & 5th generation phones
DDNS Free Lorex DDNS
System Configuration Full setup configuration over network
Ports Programmable by User
Network Protocol LAN, DHCP, Dynamic IP, DDNS
Network Interface 10/100-Base-TX, RJ-45
Network Speed Control 48 Kb - 8 MB/sec
General: Power Consumption Approx. 10 W
General: Power Supply Voltage 100-240 VAC, 12 VDC, 3 A, 50/60 Hz
General: Operating Temperature 32 to 104deg. F (0 to 40deg. C)
General: Humidity 10-90 % NC
Camera: Imaging Sensor CMOS
Camera: Total Pixels 640 x 480 (NTSC)
Camera: Minimum Illumination 0 Lux (IR on)
Camera: Night Vision Distance 60' (18 m)
Camera: Lens 5.1 mm, F2.8
Camera: Viewing Angle Diagonal 48deg.
Camera: Consumption Current 200 mA (Max)
Camera: Power Supply 12 VDC
Camera: Environmental Rating IP66 (Ingress)
Receiver: Supported Resolutions 640 x 480 @ 12 fps or 320 x 240 @ 25 fps
Receiver: Receiving Sensitivity -81 dBm
Receiver: Consumption Current 200 mA (Max.)
Receiver: Power Supply 12 VDC
Digital Wireless: Transmission Frequency ISM 2400 2480 MHz
Digital Wireless: Transmission Power 16 dBm
Unobstructed Effective Range Outdoor - 450' (137 m)
Indoor - 150' (46 m)
Digital Wireless: Spread Spectrum FHSS
Digital Wireless: Modulation Mode GFSK
Digital Wireless: Operating Temperature 14 to 122deg. F (-10 to 50deg. C)
Digital Wireless: Operating Humidity 30-90% RH
Dimensions General: 11.81 x 8.66 x 1.97" (300 x 220 x 50 mm)
Camera: 3.0 x 4.8 x 8.7" (76.2 x 121.92 x 220.98 mm) with antenna
Receiver: 0.7 x 3.7 x 6.7" (17.78 x 93.98 x 170.18 mm) with antenna attached
Weight General: 3.75 lbs (1.7 kg)
Camera: 0.6 lbs (0.3kg)
Receiver: 0.2 lbs (0.1 kg)
