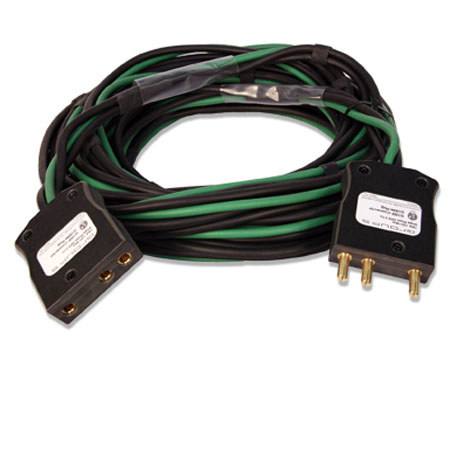

The Lex 100 Amp 25' Bates Extension Cable (120 V AC) is made with single conductor type SC cable and is banded every 2 ft with heavy-duty type head shrink tubing. This extension cable features stage pin connectors machined from high temperature phenolic material. It has double set screw terminals for secure terminations and also the stage pin connectors are ETL Listed.
|Male Connector||Lex 100A 120VAC 2P3W Studio Pin (Bates)|
|Female Connector||Lex 100A 120VAC 2P3W Studio Pin (Bates)|
|Cable length||25' / 7.62m|
|Cable Gauge||(2) #4 AWG type SC (1) #6 AWG type SC green|
|Material||High Temperature Phenolic|
|No of Phases||Single Phase|
